XMC4500F144K1024ACXQMA1

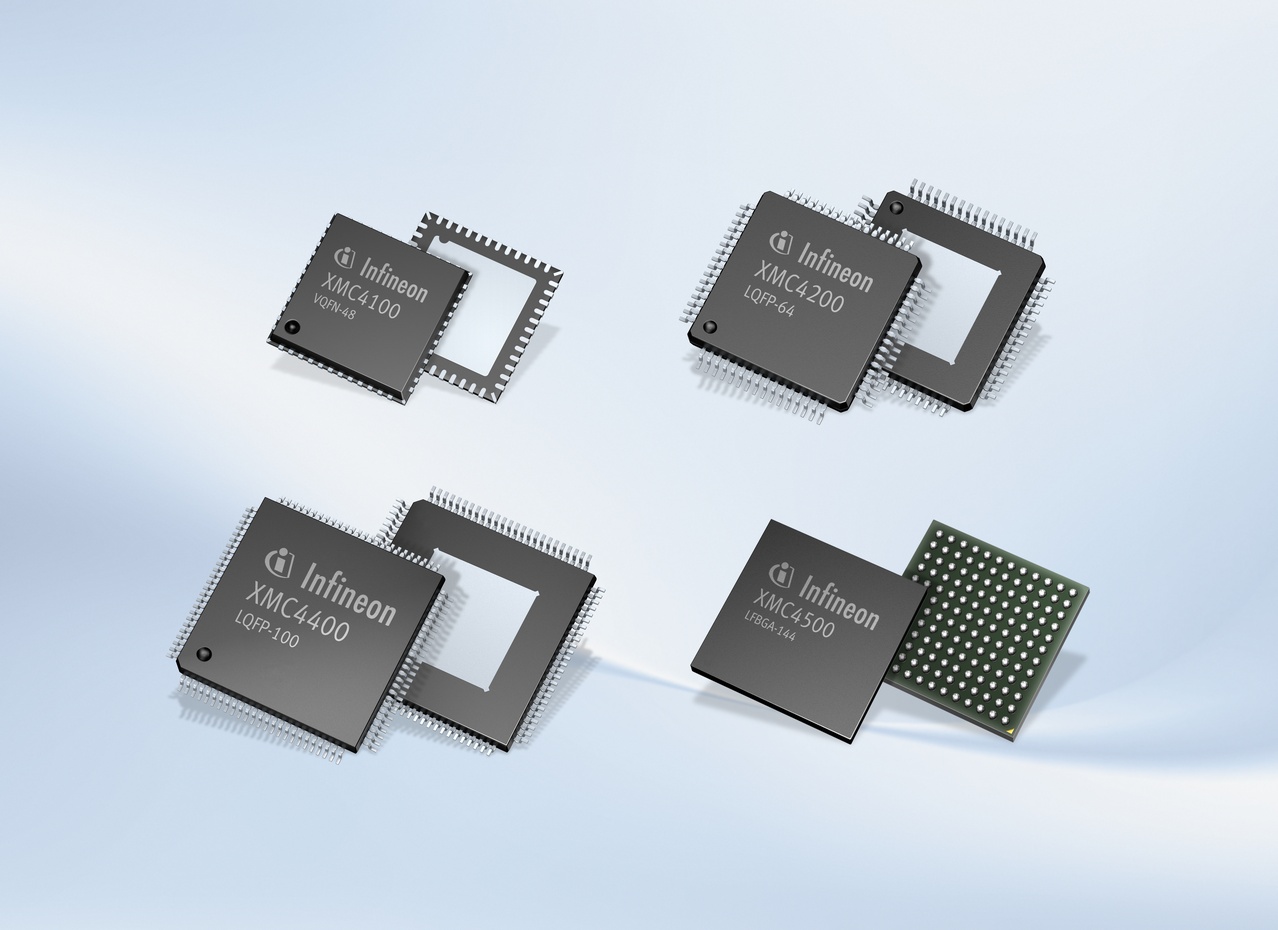

XMC4500 combines Infineon's leading-edge peripheral set with an industry-standard ARM® Cortex® -M4 core resulting in a power pack for energy-efficient industrial applications.
Availability: In Stock
Package Type: LQFP-144
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the XMC4500F144K1024ACXQMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the XMC4500F144K1024ACXQMA1
| Part Name | XMC4500F144K1024ACXQMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/microcontroller/32-bit-industrial-microcontroller-based-on-arm-cortex-m/32-bit-xmc4000-industrial-microcontroller-arm-cortex-m4/xmc4500-f144k1024-ac/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 10 x 1.3 (mm) |
| Usb Channels | 1 |
| Width | 10 (mm) |
| Program Memory Size | 1.024 MB |
| Data Bus Width | 32 (bit) |
| Program Memory Type | Flash |
| Package Type | LQFP |
| Adcs | 8 x 12 bit |
| Data Rate | 1 (Mbps) |
| Number Of Adc Units | 4 |
| Maximum Operating Temperature | +125 °C |
| Maximum Frequency | 120 (MHz) |
| Family Name | XMC4000 |
| Device Core | ARM Cortex M4 |
| Length | 10 (mm) |
| Ram Size | 160 kB |
| Pin Count | 144 |
| Mounting Type | Surface Mount |
| Maximum Number Of Ethernet Channels | 1 |
| Height | 1.3 (mm) |
| Typical Operating Supply Voltage (V) | 1.3 V, 3.3 V |
| Minimum Operating Temperature | -40 °C |
