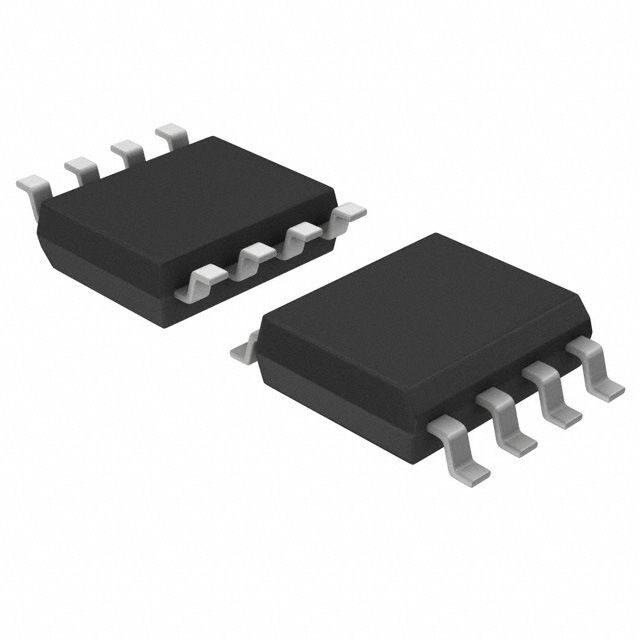

TXS0102DCTR
2-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application
Availability: In Stock
Package Type: SSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TXS0102DCTR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TXS0102DCTR
| Part Name | TXS0102DCTR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Low Level Output Current (A) | 1 (mA) |
| Dimensions | 3.15 x 2.9 x 1.2 (mm) |
| Maximum Operating Supply Voltage (V) | / V |
| Minimum Operating Supply Voltage (V) | 1.65 (A port) V, 2.3 (B Port) V |
| Maximum Propagation Delay Time Maximum Cl | 102 ns @ 5 V (B to A), 198 ns @ 5 V (A to B) |
| Logic Function | Voltage Level Translator |
| Output Type | 3 State, Open Drain |
| Package Type | SM |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
| Maximum High Level Output Current (A) | -20 (µA) |
