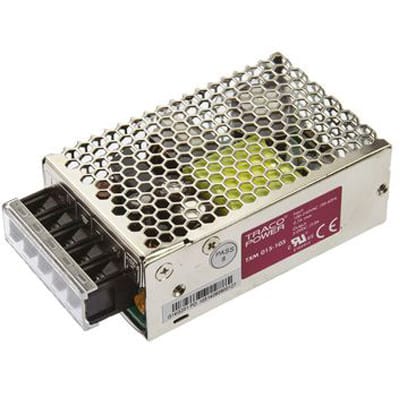

TXM 015-105
15W, 1, Embedded Switch Mode Power Supply, 5VDC, 3A, TXM 015 Series | TRACO Power TXM 015-105
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TXM 015-105 by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

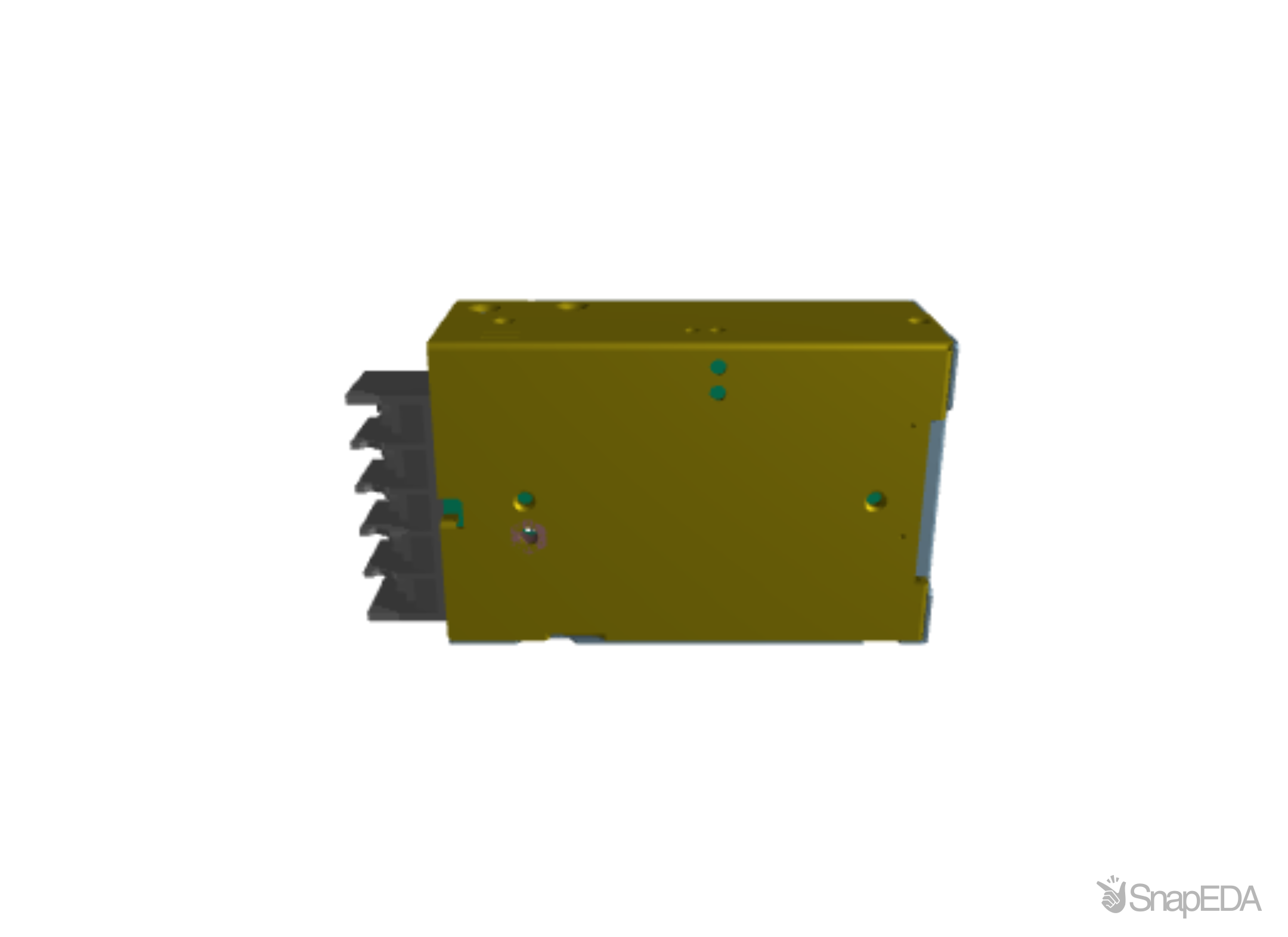

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TXM 015-105
| Part Name | TXM 015-105 |
| Manufacturer | Traco Power |
| Category | Power Products |
| Number of Outputs | single |
| Product Width | 51.0 |
| GTIN | 7613441049052 |
| Adjustable output? | Yes |
| Isolation Voltage Input and Output (V) | 3000 VDC |
| Power | 15.0 |
| Insulation System | Reinforced Insulation |
| REACH | Yes |
| Vout | 5 |
| Product Height | 28.8 |
| Efficiency | 76.0 |
| Housing Type | Metal Case |
| Remote on-off function? | No |
| Product Length | 79.0 |
| ESD Sensitive | No |
| Protection Class | Class I |
| Iout | 3000 |
| Warranty Period | 3-year |
| Temperature Range Max. | 70 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| RoHS | Yes |
| Family | AC/DC Power Supply |
| Mounting Type | Chassis Mount |
| Series Name | TXM |
| Lifecycle Status | Active |
| Vin | 85-264 |
| high_runner | TRUE |
| Weight | 180.0 |
| Temperature Range Min. | -25 |
| Connection Type | Screw Terminal |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
