TS02-66-55-BK-100-LCR-D
SnapVerified
6 x 6 mm, 5.5 mm Actuator Height, 100 gf, Black, Long Crimped, Through Hole, SPST, Tactile Switch
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TS02-66-55-BK-100-LCR-D by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

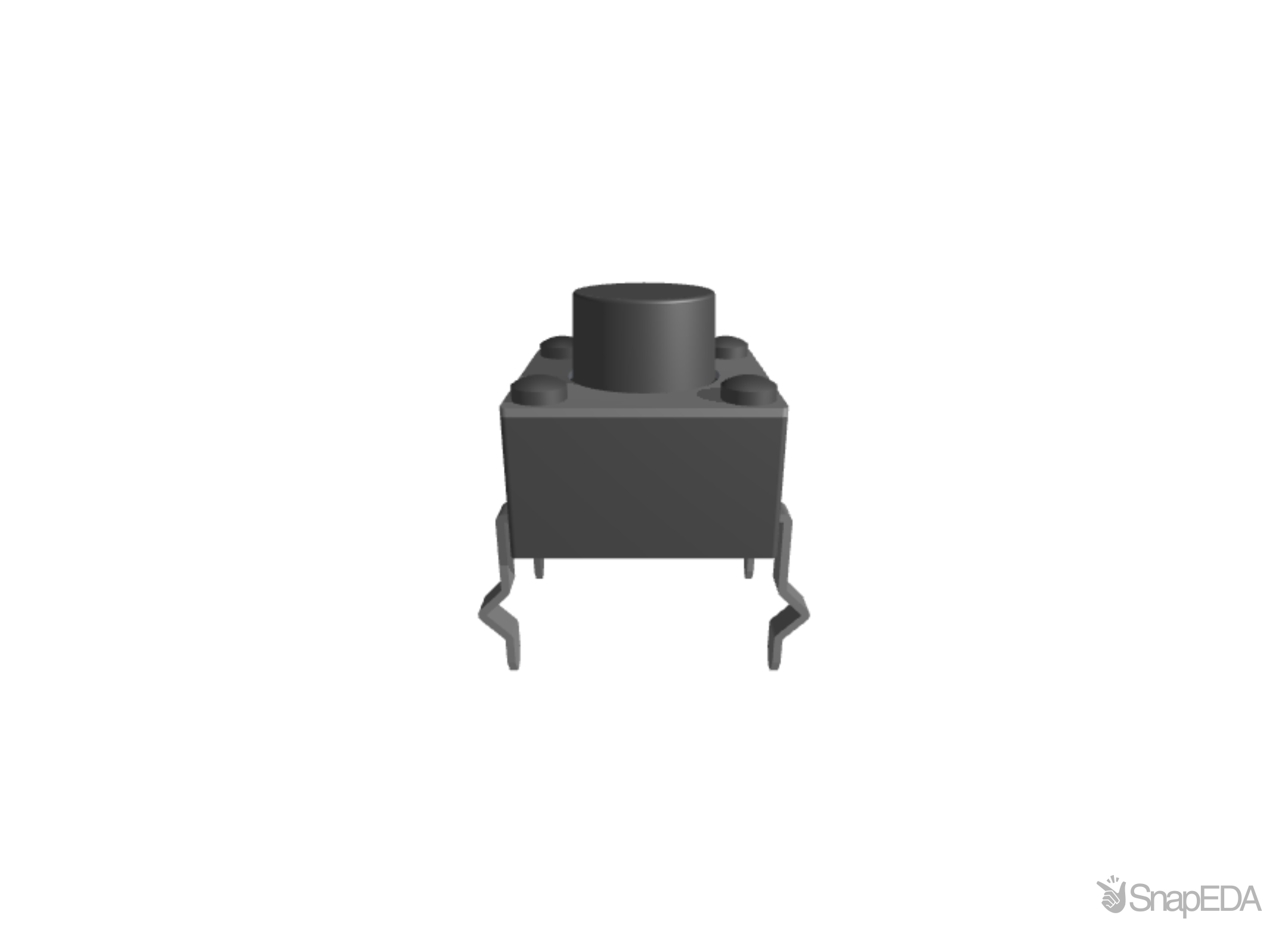

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TS02-66-55-BK-100-LCR-D
| Part Name | TS02-66-55-BK-100-LCR-D |
| Manufacturer | Same Sky |
| Rated Voltage (Vdc) (V) | 12 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/ts02-66-55-bk-100-lcr-d |
| Current Rating (mA) (A) | 50 |
| Width (mm) | 6 |
| Dimensions LxWxH (mm) | 6 x 6 x 5.5 |
| Actuator Height (mm) | 5.5 |
| Actuator Travel (mm) | 0.25 |
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
| Withstanding Voltage (Vac for 1 min) (V) | 250 |
| Lifecycles | 100000 |
| Length (mm) | 6 |
| Circuit | SPST |
| Termination | Long Crimped |
| Operating Temp. (°C) | -30 ~ 80 |
| RoHS | True |
| Height (mm) | 5.5 |
| Illumination Color | None |
| Orientation | Vertical |
| Operating Force (gf) | 100 ± 30 |
| Series | TS02 |
| Mounting Style | Through Hole |
| Contact Resistance (mΩ) | 100 |
| Illumination | No |
| Dimensions LxWxH (in) | 0.24 x 0.24 x 0.22 |
| Switch Type | Tactile |
