TLE9201SGAUMA1
TLE9201SG is a general purpose 6A H-Bridge for industrial and automotive applications, designed for the control of small DC motors and inductive loads.
Availability: In Stock
Package Type: BSOP-12
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLE9201SGAUMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

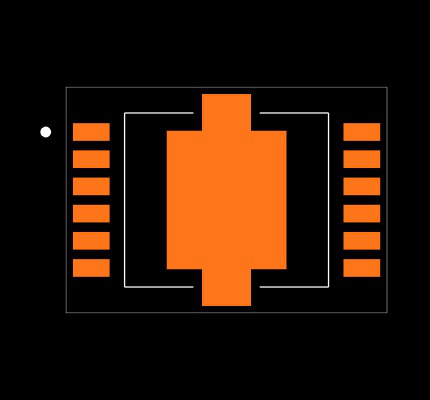

Footprint
No web preview
This Footprint is Available for

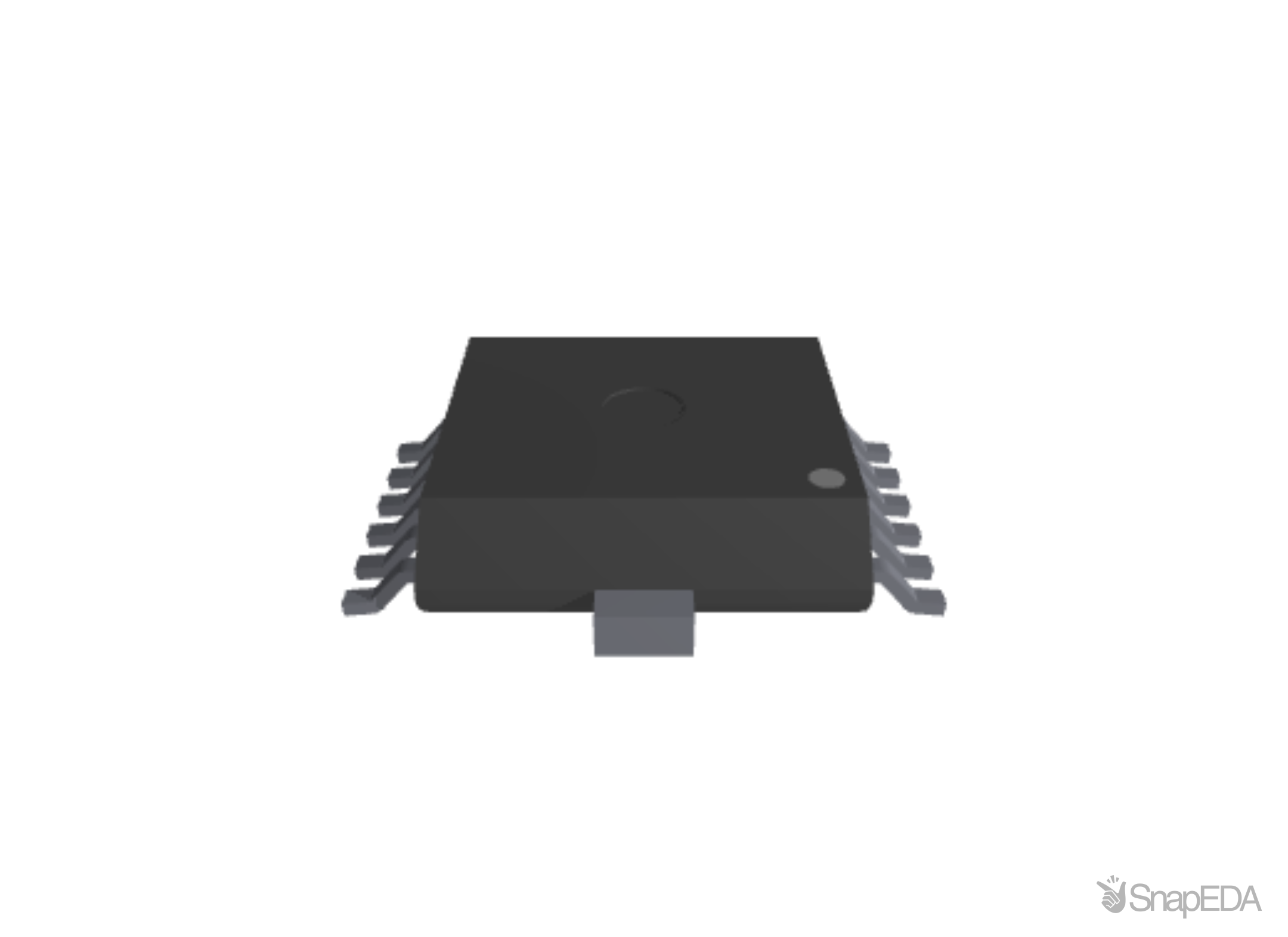

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLE9201SGAUMA1
| Part Name | TLE9201SGAUMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/motor-control-ics/intelligent-motor-control-ics/integrated-full-bridge-driver/tle9201sg/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 7.5 x 6.4 x 2.35 (mm) |
| Mounting Type | Surface Mount |
| Maximum Collector Emitter Voltage (V) | 28 V |
| Maximum Igbt Collector Current (A) | 6 (A) |
| Height | 2.35 (mm) |
| Width | 6.4 (mm) |
| Length | 7.5 (mm) |
| Package Type | DSO-12-17 |
| Typical Switching Frequency | 20 (kHz) |
| Minimum Operating Temperature | -40 °C |
| Output Configuration | Full Bridge |
| Maximum Operating Supply Voltage (V) | 28 V |
| Motor Type | BLDC |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 12 |
