T491A106M020AT

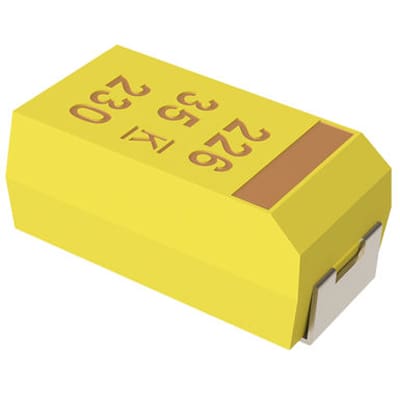

10uF Solid MnO2 Tantalum Electrolytic Capacitor, 20 V dc +/-20%, T491 Series | KEMET T491A106M020AT
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T491A106M020AT by KEMET and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T491A106M020AT
| Part Name | T491A106M020AT |
| Manufacturer | KEMET |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tolerance Plus | +20 (%) |
| Dimensions | 3.2 x 1.6 x 1.6 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±20 (%) |
| Package Case | A |
| Series | T491 |
| Depth | 1.6 (mm) |
| Equivalent Series Resistance | 5 (Ω) |
| Height | 1.6 (mm) |
| Capacitance | 10 (µF) |
| Length | 3.2 (mm) |
| Tolerance Minus | -20 (%) |
| Voltage (V) | 20 (V dc) |
| Leakage Current (A) | 2 μA |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125 (°C) |
| Technology | MnO2 |
| Minimum Operating Temperature | -55 (°C) |
| Dielectric Material Family | Tantalum |
