T4141L12031-000
M12 Power Connector, Rear Mount, Female, L, 2P+Pe, Solder, Pcb | TE Connectivity T4141L12031-000
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T4141L12031-000 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

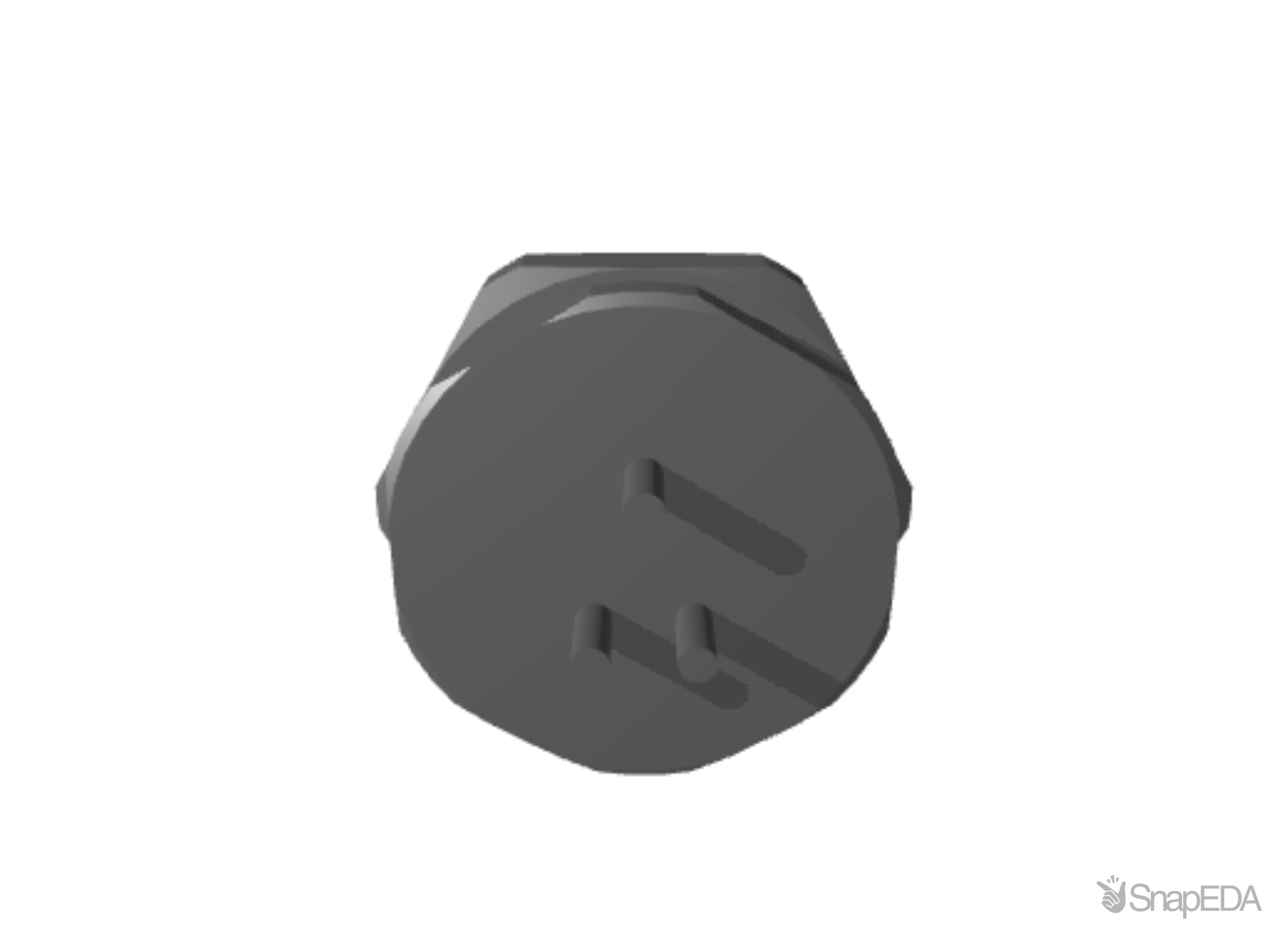

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T4141L12031-000
| Part Name | T4141L12031-000 |
| Manufacturer | TE Connectivity |
| Prewired | No |
| Shell Plating Material | Nickel |
| Shell Material | Copper Alloy |
| Circuit Application | Power |
| Factory Installed Backshell | Without |
| Flange | Without |
| ???? | Without |
| Panel Thickness | 1.5 3.2 |
| Number of Power Positions | 2 |
| Environmental Protection | IP67 |
| Shell Size | 18 |
| Connector Style | Receptacle |
| Durability Rating | 100 |
| Number of Positions | 3 |
| Termination Method to Wire & Cable | Solder |
| Environmental Protection Type | Sealed |
| TE Internal Number | T4141L12031-000 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Panel |
| Number of Signal Positions | 0 |
| Product Type | Connector |
| Connector Mounting Type | Panel |
| Positive Stop Ferrule | Without |
| Contact Quantity (Size 16) | 3 |
| Operating Temperature Range | -40 to 85 |
| Shielded | No |
| Fluid Type | None |
| Category | Connectors |
| Fluid Resistance | None |
| Peripheral Seal Material | Silicone |
| Packaging Quantity | 1 |
| Panel Mount Feature Type | Flange |
| IP Dust Sealing Level | 6 |
| O-Ring Material | Silicone |
| RoHS | True |
| Approved Standards | UL Recognized |
| Assembly Type | Electrical Connector |
| Sealable | Yes |
| Weight | 14 |
| Entry Style | Rear Insertion |
| Shell Type | Metal |
| Accessory Color | Black |
| UL Flammability Rating | UL 94V-0 |
| IP Water Sealing Level | IP67 |
| Field Serviceable | Yes |
| Contact Current Rating (Max) (A) | 16 |
| Contact Type | Female Contact |
| Insulation Material | LCP (Liquid Crystal Polymer) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
