SMA-J-P-H-ST-TH1
SnapVerified

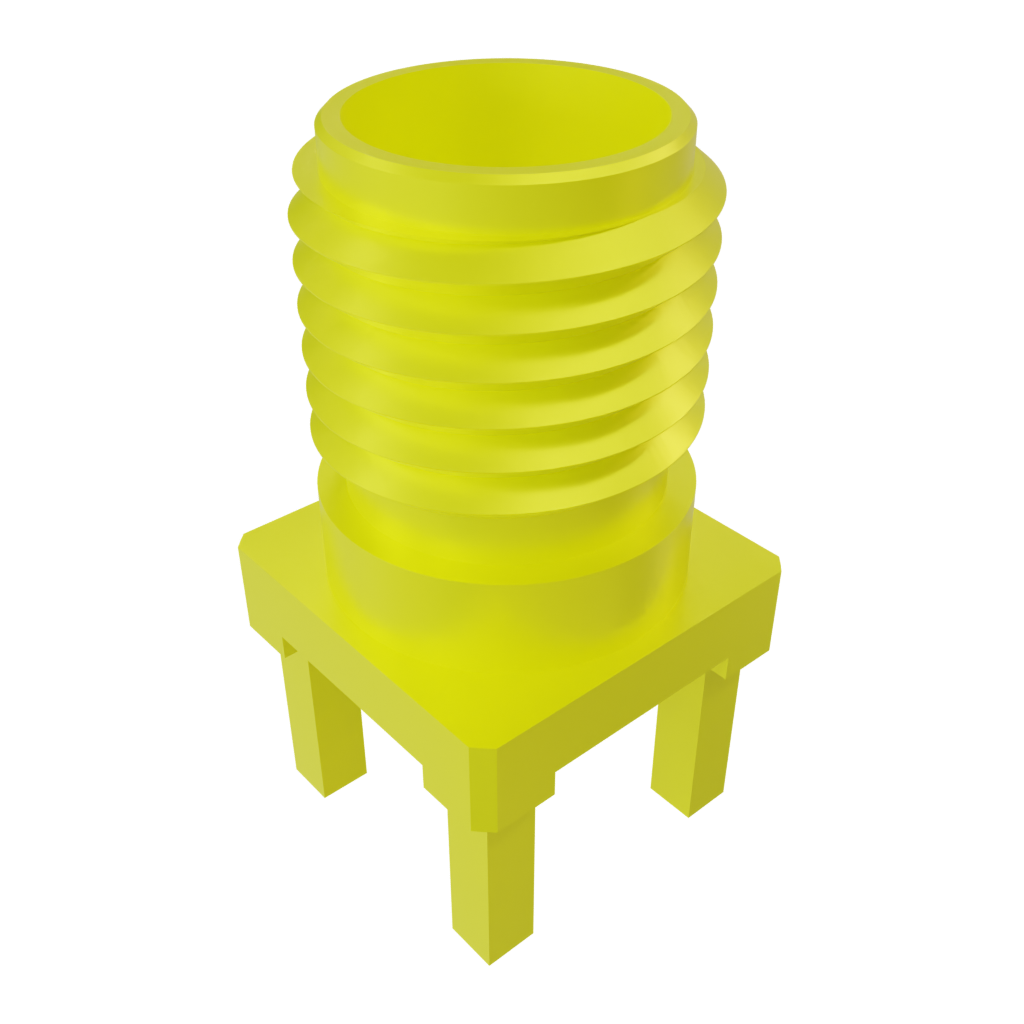

SMA Connector Jack, Female Socket 50 Ohms Through Hole Solder
Availability: In Stock
Country of Origin: Taiwan
CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMA-J-P-H-ST-TH1 by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMA-J-P-H-ST-TH1
| Part Name | SMA-J-P-H-ST-TH1 |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | SMA |
| Country of Origin | Taiwan |
| Packaging | Tray |
| RoHS | True |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mating Type | Threaded |
| Mounting Type | PCB Mount |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Solder |
| Coaxial Connector Type | SMA Connector |
| Bulkhead | No |
| Minimum Operating Temperature | -65 (°C) |
| Series | SMA |
| Operating Frequency | 0 to 20 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold |
| Size | Standard |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Beryllium Copper |
Inventory for the SMA-J-P-H-ST-TH1 by Samtec from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
1 x $2.24
|
Visit Site | |
| Chip One Stop |
13,347
|
|
Visit Site | |
| Farnell UK |
932
|
|
Visit Site | |
| Newark |
2
|
|
Visit Site | |
| Powell Electronics |
77
|
|
Visit Site | |
| Richardson RFPD |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Europe |
3,500
|
|
Visit Site | |
| element14 Singapore |
947
|
|
Visit Site |
No issues have been reported for the SMA-J-P-H-ST-TH1
If you experienced any issues with the symbol or footprint, please report it.
