SEC1110I-A5-02
SEC1110I-A5-02, Smart Card Interface Smart Card 3 - 5.5 V 16-Pin QFN | Microchip Technology Inc. SEC1110I-A5-02
Availability: In Stock
Package Type: QFN-16

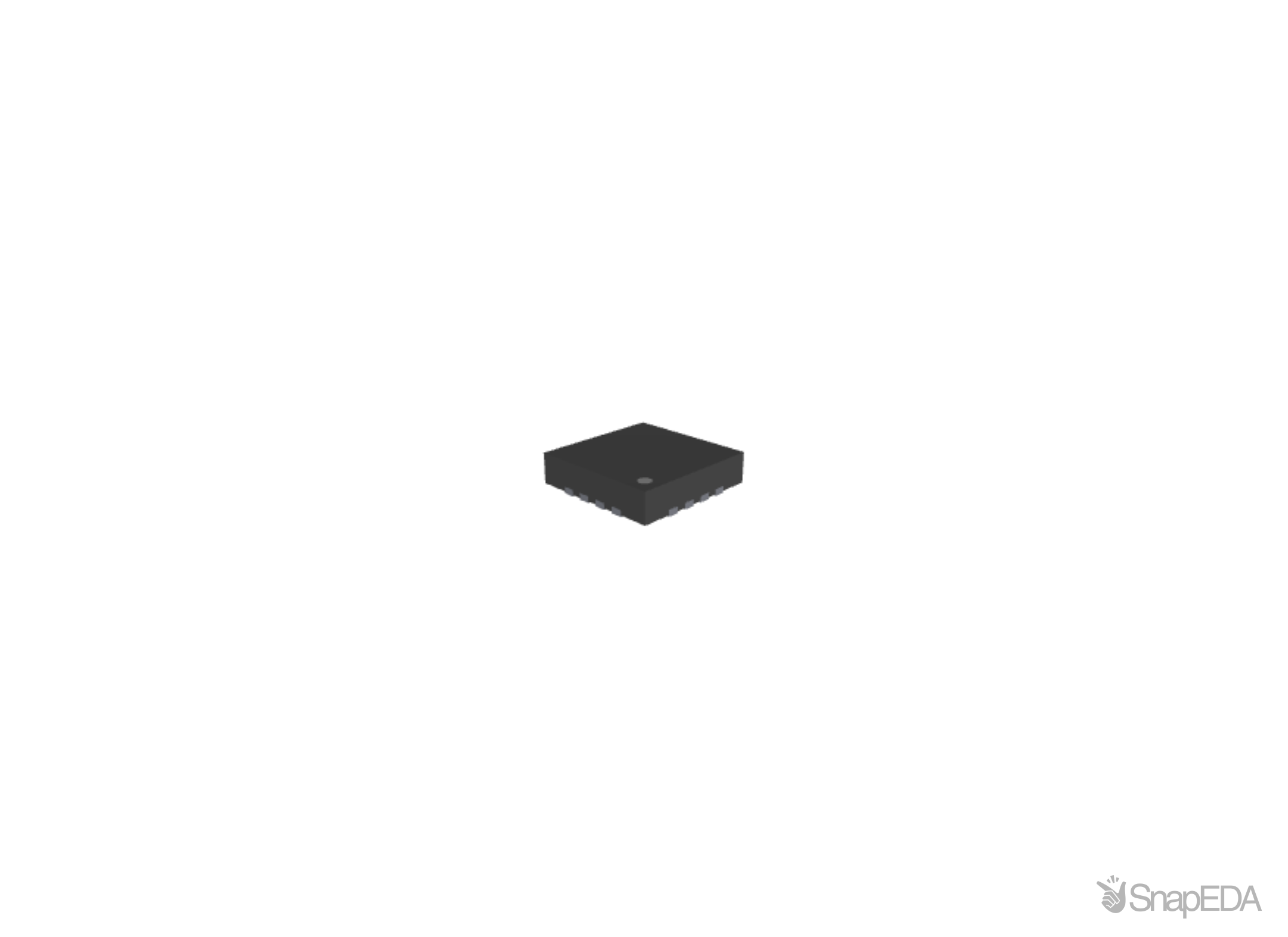

CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SEC1110I-A5-02 by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

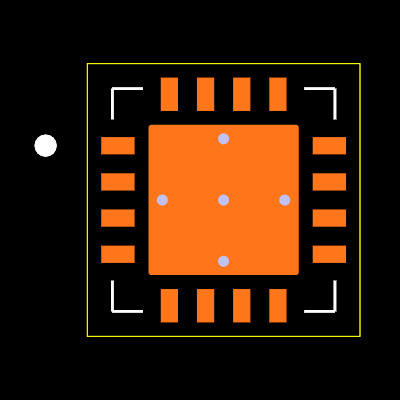

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SEC1110I-A5-02
| Part Name | SEC1110I-A5-02 |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 5.1 x 5.1 x 0.95 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Minimum Operating Supply Voltage (V) | 3 V |
| Height | 0.95 (mm) |
| Width | 5.1 (mm) |
| Length | 5.1 (mm) |
| Number Of Timer/Counters | 3 |
| Package Type | QFN |
| Minimum Operating Temperature | -40 °C |
| Peripheral Type | Smart Card |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
