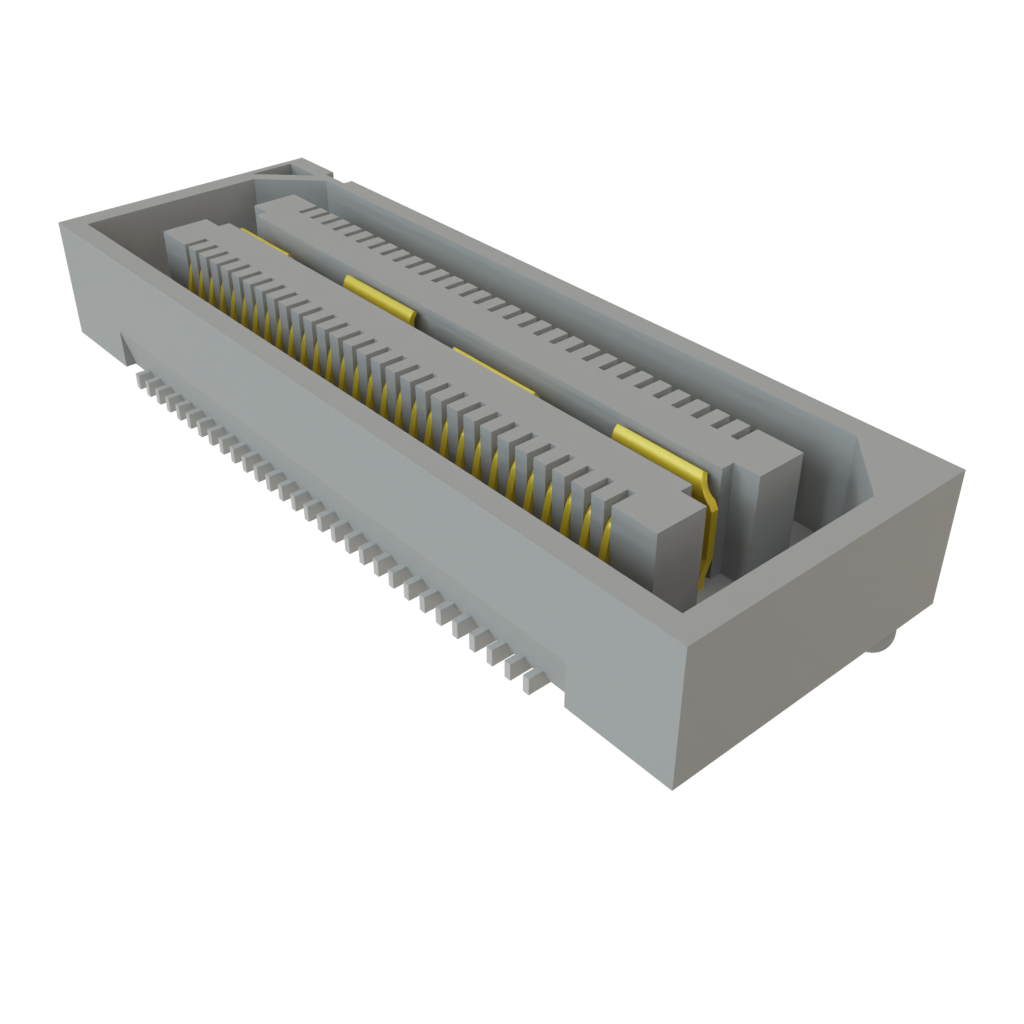

QSH-030-01-L-D-A

Name: QSH-030-01-L-D-A
Brand: Samtec

SnapVerified

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Availability: In Stock

Country of Origin: Costa Rica

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the QSH-030-01-L-D-A by Samtec and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Samples

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the QSH-030-01-L-D-A

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the QSH-030-01-L-D-A

Part Name	QSH-030-01-L-D-A
Manufacturer	Samtec
HTS Number	8536.69
ECCN Category	EAR99
Series	QSH
Country of Origin	Costa Rica
Packaging	Tray
Life Cycle Status	Production
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Current Rating (A)	12 (A)
Mounting Type	Surface Mount
Voltage Rating (V)	125 V
Series	QSH
Body Orientation	Straight
Termination Method	Solder
Connector System	Board to Board
Number Of Rows	2
Contact Plating	Gold (Contact), Matte Tin (Tail)
Pitch	0.5 (mm)
Number Of Contacts	60
Type	Board to Board
Contact Material	Bronze

Inventory for the QSH-030-01-L-D-A by Samtec from major distributors.

Supplier	Quantity	Price	Purchase
★ Featured	1,031			Visit Site
