MH2029-300Y

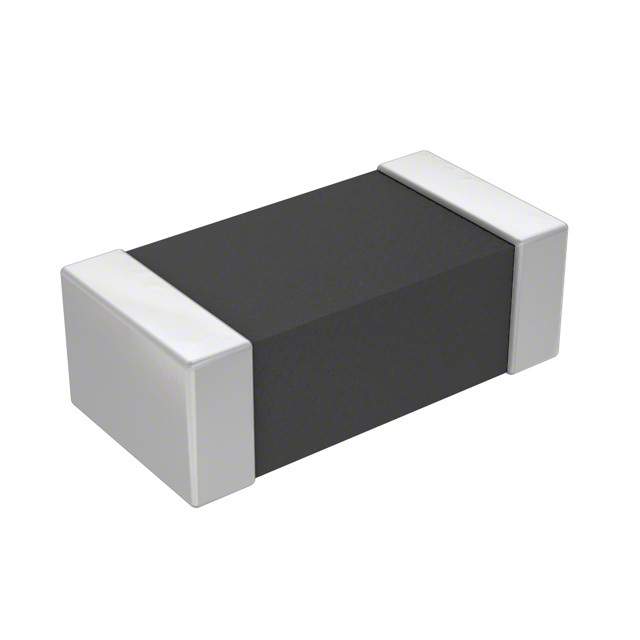

CB2x1.2x.9mm, 30?25%3A, non-shdSMD | Bourns MH2029-300Y
Availability: In Stock
Package Type: 0805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MH2029-300Y by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MH2029-300Y
| Part Name | MH2029-300Y |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 25 (mΩ) |
| Current Rating (A) | 3 (A) |
| Dimensions | 2 x 1.2 x 0.9 (mm) |
| Series | MH |
| Material | Ferrite |
| Impedance At 100 Mhz | 30 (Ω) |
| Height | 0.9 (mm) |
| Application | IC Power Lines, Power Supply Lines, Signal Lines |
| Depth | 1.2 (mm) |
| Length | 2 (mm) |
| Package Type | 2029 |
| Type | Chip Ferrite Bead |
