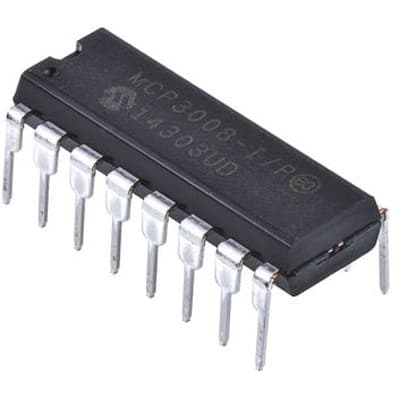

MCP3008-I/P
Microchip 10 bit Serial ADC Differential Input 16-Pin PDIP | Microchip Technology Inc. MCP3008-I/P
Availability: Out of Stock
Package Type: DIP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP3008-I/P by Microchip Technology and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP3008-I/P
| Part Name | MCP3008-I/P |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Adcs | 8 |
| Integral Nonlinearity Error | ±1 (LSB) |
| Dimensions | 19.05 x 6.35 x 3.3 (mm) |
| Mounting Type | Through Hole |
| Resolution | 10-bit |
| Digital Interface Type | Serial (SPI) |
| Input Signal Type | Pseudo Differential, Single Ended |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | PDIP |
| Architecture | SAR |
| Minimum Operating Temperature | -40 °C |
| Sampling Rate | 200 (ksps) |
| Input Type | Voltage |
| Maximum Operating Temperature | 85 °C |
| Pin Count | 16 |
Inventory for the MCP3008-I/P by Microchip Technology from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Microchip Technology Inc |
11,605
|
|
Visit Site | |
| Newark |
196
|
|
Visit Site | |
| RS Americas |
184
|
|
Visit Site | |
| TME |
880
|
|
Visit Site |
No issues have been reported for the MCP3008-I/P
