LT1790ACS6-1.25#TR

Name: LT1790ACS6-1.25#TR
Brand: Analog Devices

Series Voltage Reference IC Fixed 1.25V V ±0.05% 5 mA TSOT-23-6

Availability: In Stock

Package Type: SOT-23-6

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the LT1790ACS6-1.25#TR by Analog Devices and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

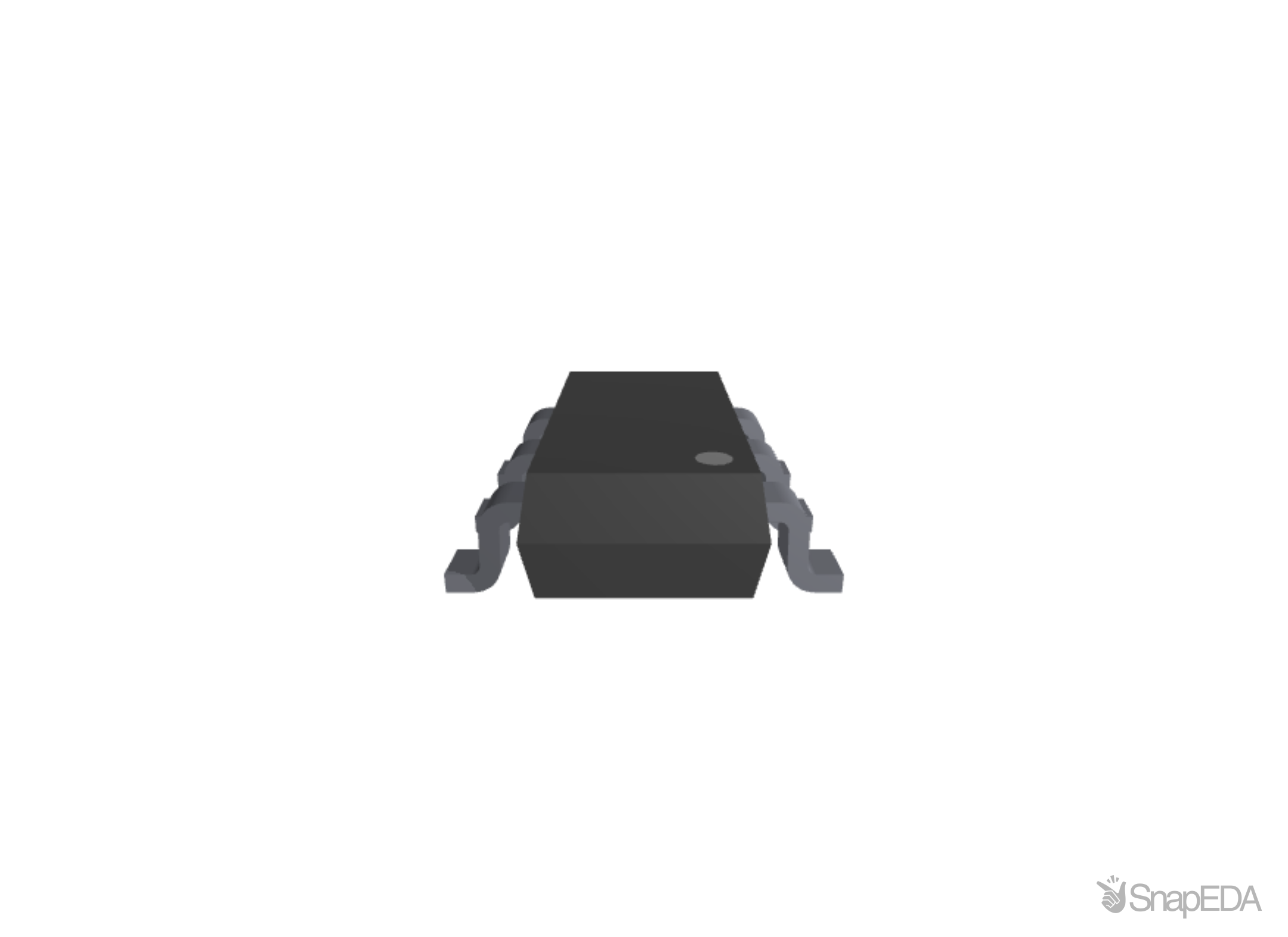

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the LT1790ACS6-1.25#TR

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the LT1790ACS6-1.25#TR

Part Name	LT1790ACS6-1.25#TR
Manufacturer	Analog Devices
RoHS	True
Life Cycle Status	Obsolete
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Load Regulation	250 ppm/mA
Dimensions	2.9 x 1.75 x 0.9 (mm)
Mounting Type	Surface Mount
Maximum Output Current (A)	300 (mA)
Line Regulation	220 ppm/V
Height	0.9 (mm)
Width	1.75 (mm)
Length	2.9 (mm)
Initial Accuracy	±0.05 %
Package Type	TSOT-23
Maximum Output Voltage (V)	1.251 V
Minimum Operating Temperature	0 °C
Minimum Output Voltage (V)	1.248 V
Nominal Voltage (V)	1.25 (V)
Reference Type	Fixed
Maximum Operating Temperature	+70 °C
Pin Count	6
Maximum Input Voltage (V)	20 V
Topology	Series

Inventory for the LT1790ACS6-1.25#TR by Analog Devices from major distributors.

Supplier	Quantity	Price	Purchase
★ Featured		N/A		Visit Site
Arrow Electronics	1,430	1 x $9.92		Visit Site
