LT1763CS8
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-SOIC
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1763CS8 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

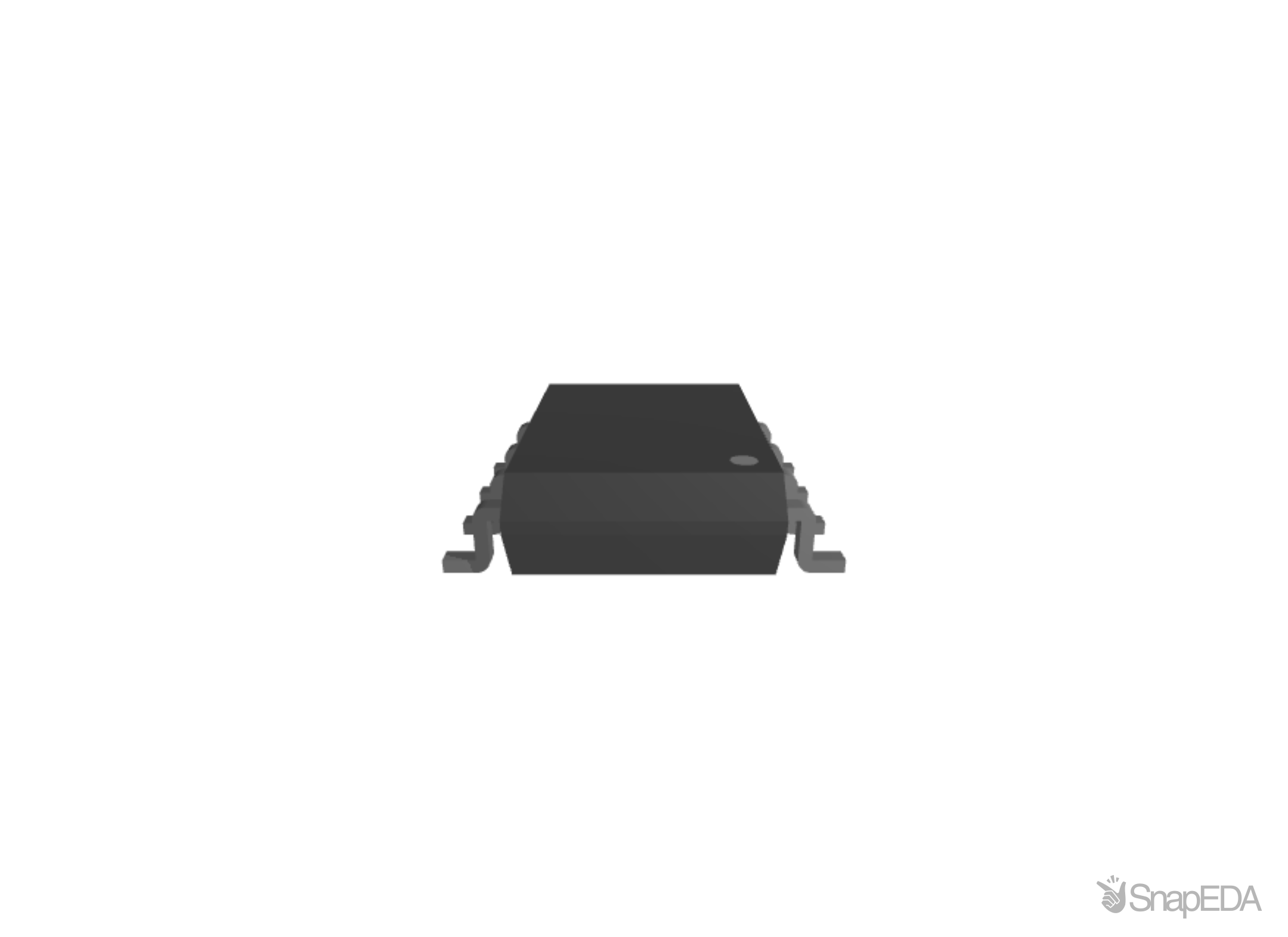

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1763CS8
| Part Name | LT1763CS8 |
| Manufacturer | Analog Devices |
| RoHS | No |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 30 mV |
| Dimensions | 5.004 x 3.988 x 1.498 (mm) |
| Mounting Type | Surface Mount |
| Quiescent Current (A) | 0.03 (mA) |
| Maximum Operating Temperature | +125 °C |
| Regulator Type | Low Dropout Voltage |
| Output Type | Fixed |
| Height | 1.498 (mm) |
| Width | 3.988 (mm) |
| Length | 5 (mm) |
| Output Voltage (V) | 3 V |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 1.8 V |
| Maximum Output Current (A) | 500 (mA) |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 20 V |
| Line Regulation | 5 mV |
Inventory for the LT1763CS8 by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Arrow Electronics |
1
|
1 x $39.35
|
Visit Site |
No issues have been reported for the LT1763CS8
If you experienced any issues with the symbol or footprint, please report it.
