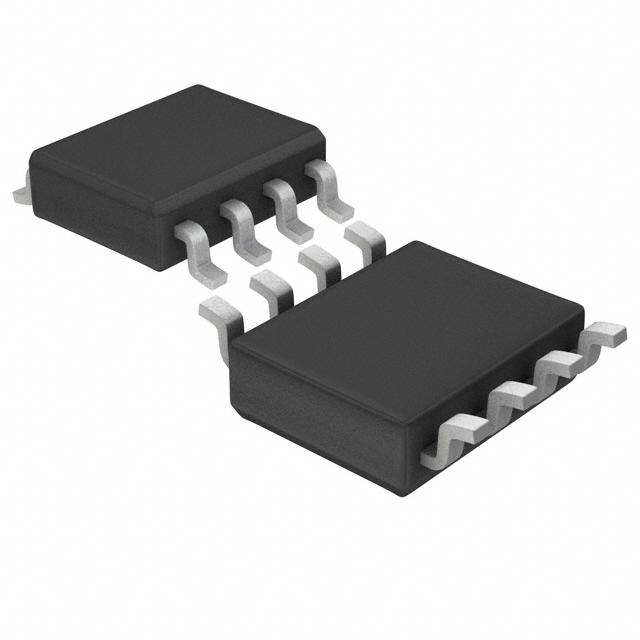

LT1006S8#TRPBF
Standard (General Purpose) Amplifier 1 Circuit 8-SO
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1006S8#TRPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1006S8#TRPBF
| Part Name | LT1006S8#TRPBF |
| Manufacturer | Analog Devices |
| Product Category | High Voltage Op Amps ≥12V |
| Package | SOIC 150 MIL |
| MOQ | 2500 |
| RoHS value | Yes |
| Part Launch Date | 1/1/1998 5:00:00 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/lt1006.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Rail To Rail | No |
| Typical Dual Supply Voltage (V) | ±15 (V) |
| Typical Input Voltage Noise Density (V) | 23 (nV/√Hz) |
| Dimensions | 5.004 x 3.988 x 1.498 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 1.2 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 1 |
| Length | 5 (mm) |
| Height | 1.498 (mm) |
| Width | 3.988 (mm) |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Amplifier Type | Low Power, Precision |
| Typical Voltage Gain (V) | 132 dB |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 8 |
