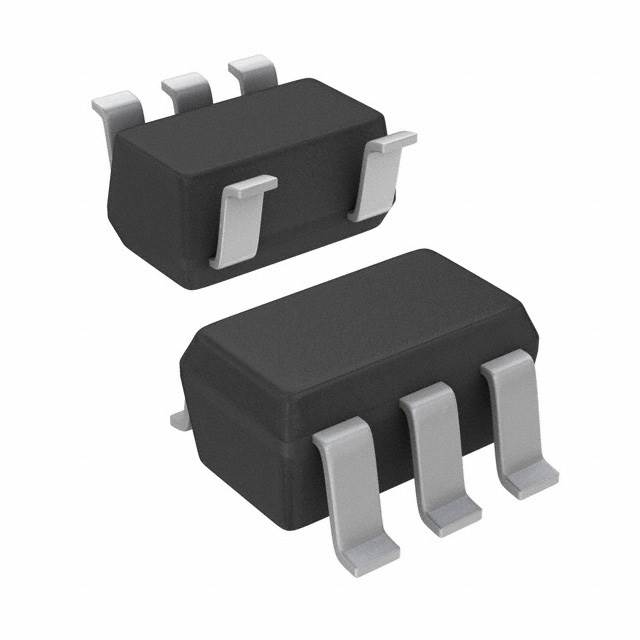

LP2985-50DBVR
150-mA, 16-V, low-dropout voltage regulator with enable
Availability: In Stock
Package Type: SOT-23-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LP2985-50DBVR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LP2985-50DBVR
| Part Name | LP2985-50DBVR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Dimensions | 3.05 x 1.75 x 1.45 (mm) |
| Mounting Type | Surface Mount |
| Quiescent Current (A) | 850 (µA) |
| Maximum Operating Temperature | +125 °C |
| Regulator Type | Low Noise LDO |
| Output Type | Fixed |
| Height | 1.45 (mm) |
| Width | 1.75 (mm) |
| Length | 3.05 (mm) |
| Output Voltage (V) | -0.3 → 9 V |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 2.2 V |
| Maximum Output Current (A) | 150 (mA) |
| Pin Count | 5 |
| Maximum Input Voltage (V) | 16 V |
| Line Regulation | 0.032 %/V |
