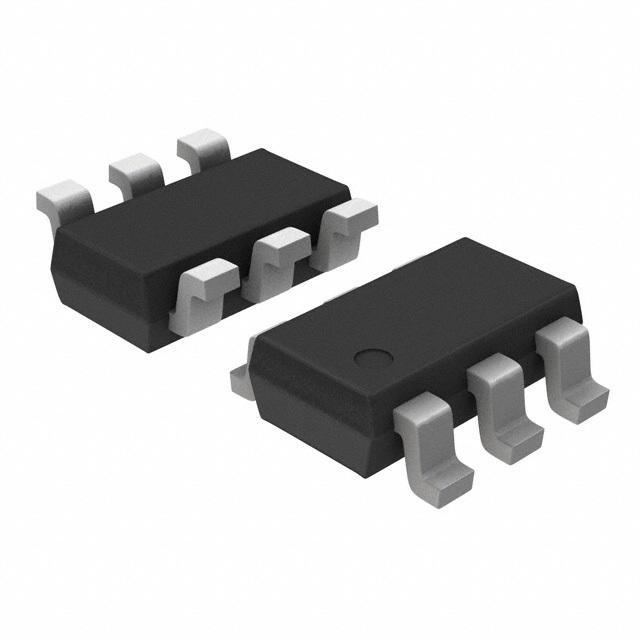

LMR12010YMKE/NOPB
3V to 20V, 1A Step-Down DC/DC Switching Regulator in SOT-23
Availability: In Stock
Package Type: SOT-23-THN-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMR12010YMKE/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LMR12010YMKE/NOPB
| Part Name | LMR12010YMKE/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Dimensions | 3.05 x 1.75 x 1 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 3.6 MHz |
| Current Conversion Type (A) | DC-DC |
| Package Type | SOT-23 |
| Maximum Output Voltage (V) | 17 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 0.8 V |
| Controller Type | Step Down Buck Converter |
| Maximum Output Current (A) | 1 (A) |
| Pin Count | 6 |
| Maximum Input Voltage (V) | 20 V |
| Minimum Input Voltage (V) | 3 V |
Inventory for the LMR12010YMKE/NOPB by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
469
|
|
Visit Site | |
|
★ Featured
|
1,210
|
|
Visit Site | |
|
★ Featured
|
5,000
|
217 x $1.60
|
Visit Site | |
| Texas Instruments |
69,735
|
|
Visit Site | |
| Verical |
53
|
5 x $2
|
Visit Site |
No issues have been reported for the LMR12010YMKE/NOPB
