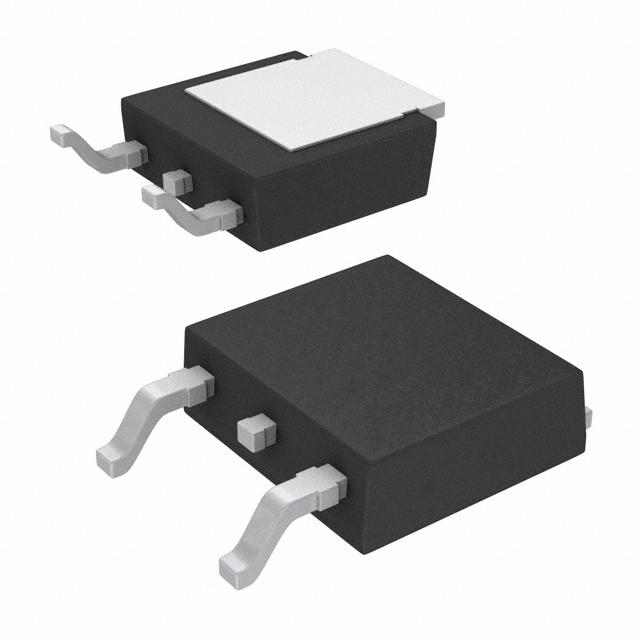

IPD200N15N3GATMA1
The 120V OptiMOS family offers at the same time the lowest on-state resistances of the industry and the fastest switching behavior, allowing for the achievement of outstanding performance in a wide range of applications.
Availability: In Stock
Package Type: TO-252-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IPD200N15N3GATMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

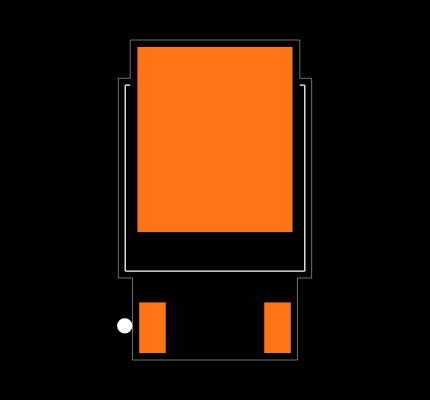

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IPD200N15N3GATMA1
| Part Name | IPD200N15N3GATMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-300v-n-channel-power-mosfet/ipd200n15n3-g/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 50 A |
| Width | 9.45 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 150 V |
| Maximum Gate Threshold Voltage (V) | 4 (V) |
| Package Type | DPAK (TO-252) |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 2 (V) |
| Maximum Operating Temperature | +175 °C |
| Channel Type | N |
| Length | 10.36 (mm) |
| Typical Gate Charge Vgs | 23 nC @ 10 V |
| Pin Count | 3 |
| Mounting Type | Surface Mount |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 150 W |
| Series | OptiMOSâ„¢ 3 |
| Maximum Gate Source Voltage (V) | 20 V |
| Height | 4.57 (mm) |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage (V) | 1.2 (V) |
| Maximum Drain Source Resistance | 20 mΩ |
Inventory for the IPD200N15N3GATMA1 by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
32,626
|
|
Visit Site | |
|
★ Featured
|
3,265
|
|
Visit Site | |
|
★ Featured
|
20,000
|
350 x $0.86
|
Visit Site | |
| Arrow Europe |
65,000
|
2,500 x $1.00
|
Visit Site | |
| Verical |
4,975
|
24 x $1.33
|
Visit Site |
No issues have been reported for the IPD200N15N3GATMA1
If you experienced any issues with the symbol or footprint, please report it.
