ESDALC6V1-5M6
- Clamp - Ipp Tvs Diode Surface Mount 6-µQFN (1.45x1.0)
Availability: In Stock
Package Type: UFDFN-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ESDALC6V1-5M6 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

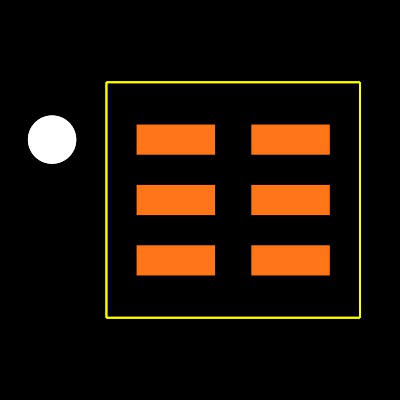

Footprint
No web preview
This Footprint is Available for

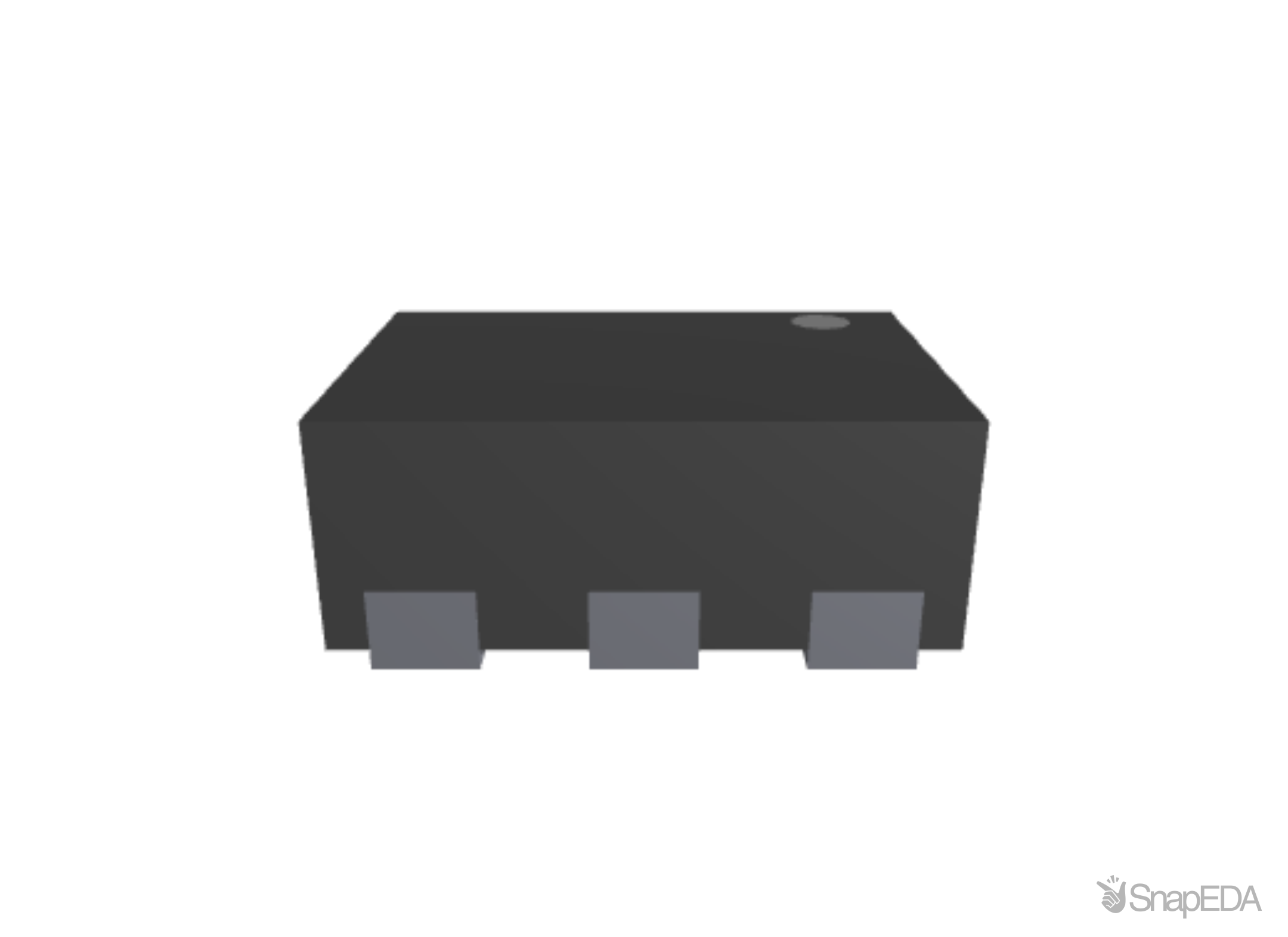

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ESDALC6V1-5M6
| Part Name | ESDALC6V1-5M6 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 3 (V) |
| Maximum Peak Pulse Current (A) | 3 (A) |
| Dimensions | 1.45 x 1 x 0.55 (mm) |
| Minimum Breakdown Voltage (V) | 6.1 (V) |
| Direction Type | Uni-Directional |
| Diode Configuration | Common Anode |
| Maximum Reverse Leakage Current (A) | 70 (nA) |
| Esd Protection | Yes |
| Height | 0.55 (mm) |
| Width | 1 (mm) |
| Length | 1.45 (mm) |
| Package Type | μQFN |
| Number Of Elements Per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 30 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the ESDALC6V1-5M6 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| TME |
2,986
|
|
Visit Site |
No issues have been reported for the ESDALC6V1-5M6
If you experienced any issues with the symbol or footprint, please report it.
