ES1AL
35ns, 1A, 50V, Super Fast Recovery Rectifier
Availability: In Stock
Package Type: SUB SMA-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ES1AL by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

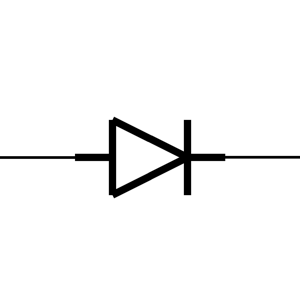

Symbol
No web preview
This Symbol is Available for

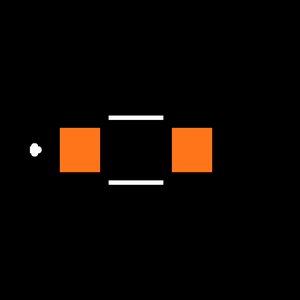

Footprint
No web preview
This Footprint is Available for

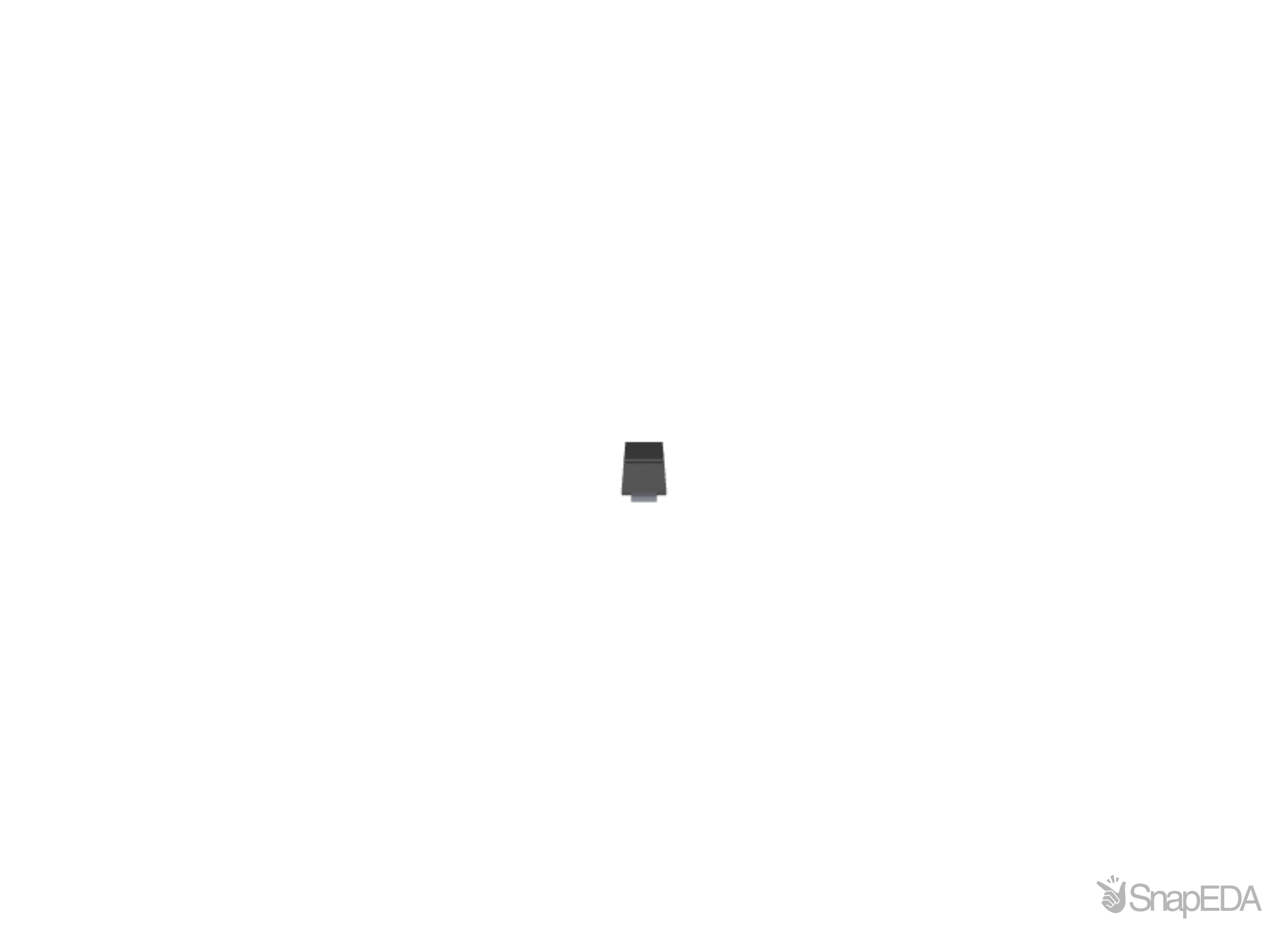

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ES1AL
| Part Name | ES1AL |
| Manufacturer | Taiwan Semiconductor |
| Family | Super Fast |
| Maximum DC Reverse Current (A) | 5e-06 |
| Reverse Recovery Time | 3.5e-08 |
| Case Package | Sub SMA |
| Peak Forward Surge Current (A) | 30.0 |
| Maximum Average Forward Rectified Current (A) | 1.0 |
| Maximum Instantaneous Forward Voltage (V) | 0.95 |
| Life Cycle Status | Not Recommended for New Designs |
| AEC-Q compliant | True |
| Maximum Operating Junction Temperature | 150.0 |
| RoHS | True |
| Maximum Repetitive Peak Reverse Voltage (V) | 50.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the ES1AL by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
8,823
|
|
Visit Site | |
| element14 Singapore |
8,823
|
|
Visit Site |
No issues have been reported for the ES1AL
