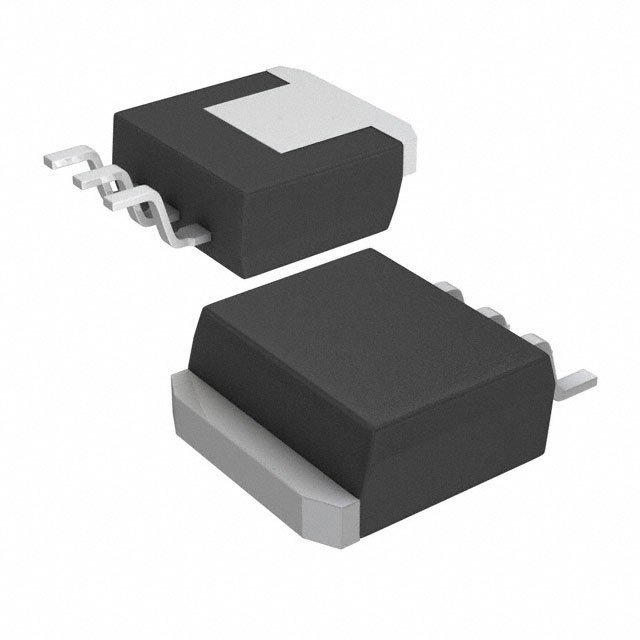

CSD18535KTT
60-V, N channel NexFET™ power MOSFET, single D2PAK, 2 mOhm
Availability: In Stock
Package Type: TO-263-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CSD18535KTT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CSD18535KTT
| Part Name | CSD18535KTT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 279 A |
| Width | 11.33 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 60 V |
| Maximum Gate Threshold Voltage (V) | 2.4 (V) |
| Package Type | D2PAK (TO-263) |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 1.4 (V) |
| Maximum Operating Temperature | +175 °C |
| Channel Type | N |
| Length | 10.67 (mm) |
| Typical Gate Charge Vgs | 140 nC @ 10 V |
| Pin Count | 3 |
| Channel Mode | Enhancement |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 W |
| Series | NexFET |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Height | 4.83 (mm) |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage (V) | 1 (V) |
| Maximum Drain Source Resistance | 2.9 mΩ |
