CAT24C256WI-GT3

Name: CAT24C256WI-GT3
Brand: Onsemi

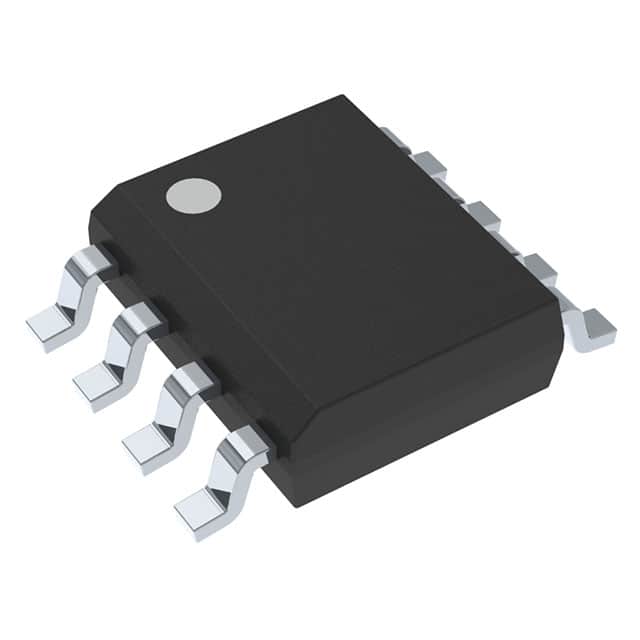

EEPROM Serial-I2C 256K-bit 32K x 8 2.5V/3.3V/5V 8-Pin SOIC N T/R

Availability: In Stock

Package Type: SOIC-8

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the CAT24C256WI-GT3 by Onsemi and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the CAT24C256WI-GT3

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the CAT24C256WI-GT3

Part Name	CAT24C256WI-GT3
Manufacturer	onsemi
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Data Retention	100 (yr)
Pin Count	8
Dimensions	5 x 4 x 1.5 (mm)
Maximum Operating Supply Voltage (V)	5.5 V
Organisation	32K x 8 bit
Minimum Operating Temperature	-40 °C
Minimum Operating Supply Voltage (V)	1.8 V
Number Of Bits Per Word	8 (bit)
Automotive Standard	AEC-Q100
Memory Size	256 (kbit)
Package Type	SOIC
Interface Type	Serial-I2C
Programming Voltage (V)	1.8 → 5.5 (V)
Maximum Random Access Time	3500 (ns)
Mounting Type	Surface Mount
Maximum Operating Temperature	+85 °C
Number Of Words	32 (k)
