BZD27C24P
Sub SMA, 1000mW, 6%, Zener Diode
Availability: In Stock
Package Type: SUB SMA-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BZD27C24P by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

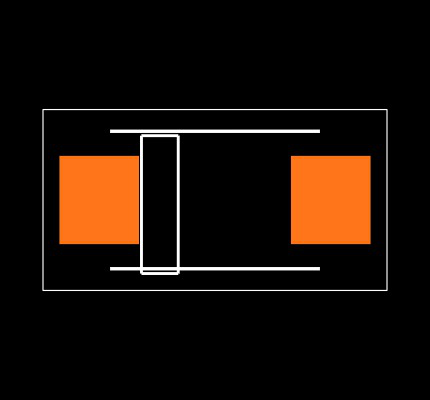

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BZD27C24P
| Part Name | BZD27C24P |
| Manufacturer | Taiwan Semiconductor |
| Minimum Zener Voltage (V) | 22.8 |
| Zener Voltage (V) | 24.0 |
| Maximum Zener Voltage (V) | 25.6 |
| Case Package | Sub SMA |
| Moisture Level | 1.0 |
| Zener Test Current (A) | 0.025 |
| Power Dissipation | 1.0 |
| Zener Voltage tolerance (V) | [-6.0, 6.0] |
| Reverse Voltage (V) | 18.0 |
| Maximum Operating Junction Temperature | 175.0 |
| RoHS | True |
| AEC-Q compliant | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Nominal Zener Voltage (V) | 24 (V) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1 W |
| Package Type | SOD-123W |
| Number Of Elements Per Chip | 1 |
| Zener Type | General Purpose |
| Diode Configuration | Single |
Inventory for the BZD27C24P by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
21,000
|
3,410 x $0.10
|
Visit Site |
No issues have been reported for the BZD27C24P
If you experienced any issues with the symbol or footprint, please report it.
