BTS3408GXUMA2
The BTS3408G is a dual channel Low-Side Switch with D-MOS output stages for driving resistive, capacitive and inductive loads.
Availability: In Stock
Package Type: SOIC-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BTS3408GXUMA2 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

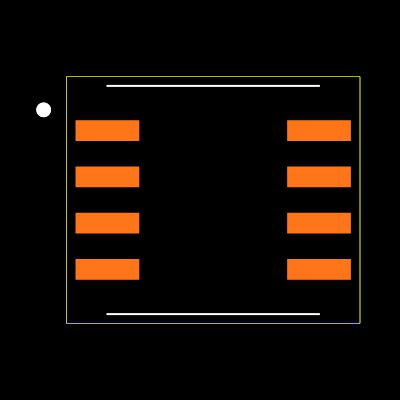

Footprint
No web preview
This Footprint is Available for

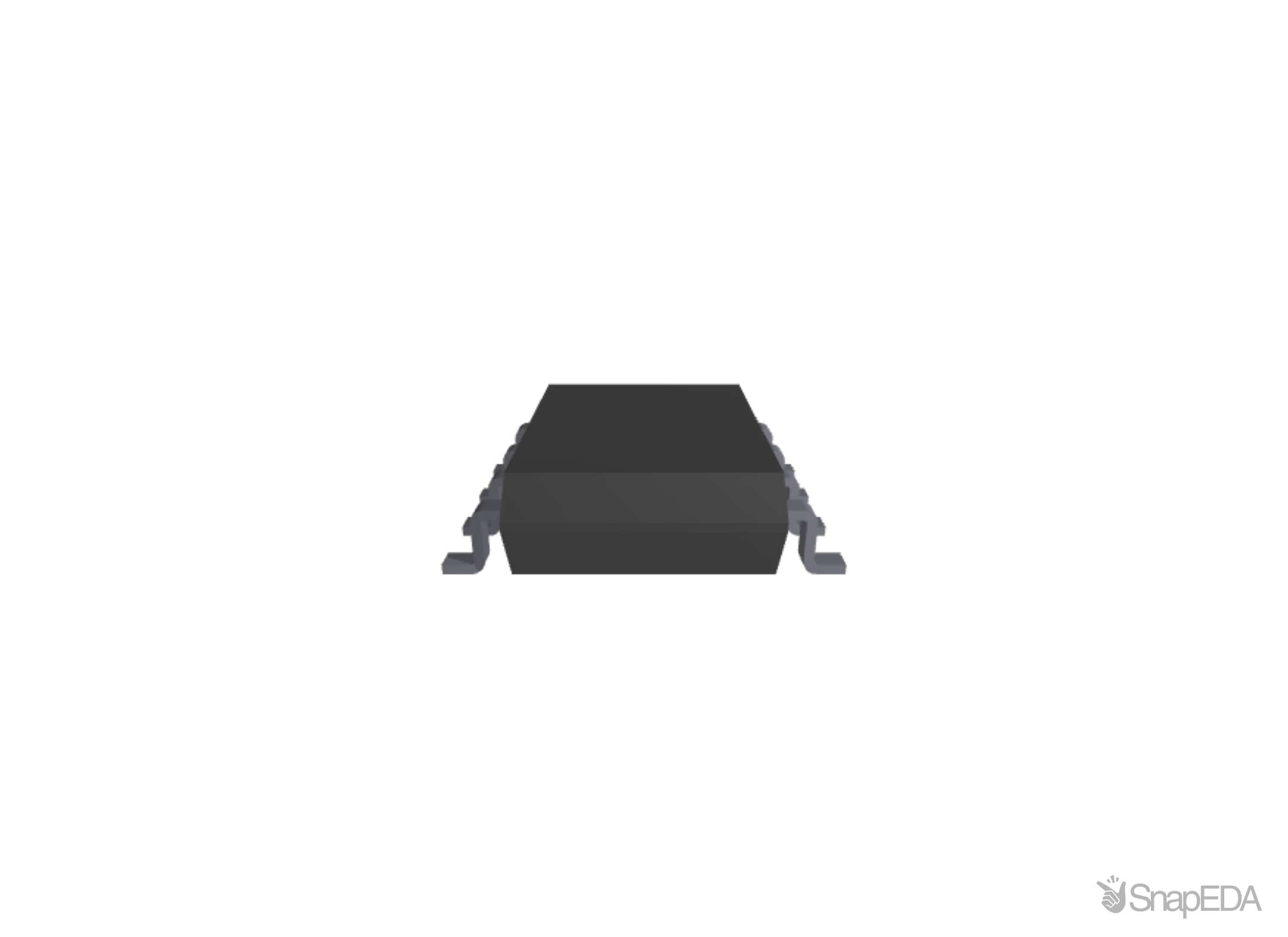

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BTS3408GXUMA2
| Part Name | BTS3408GXUMA2 |
| Manufacturer | Infineon |
| Life Cycle Status | Restricted Availability |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/smart-low-side-high-side-switches/automotive-smart-low-side-switch-hitfet/bts3408g/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Operating Current (A) | 0.55 (A) |
| Power Switch Type | Low Side Switch |
| Switch On Resistance | 550 (mΩ) |
| Dimensions | 5 x 4 x 1.45 (mm) |
| Maximum Operating Supply Voltage (V) | 60 V |
| Number Of Outputs | 2 |
| Package Type | DSO |
| Power Switch Topology | Low Side |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
Inventory for the BTS3408GXUMA2 by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
|
★ Featured
|
26,760
|
218 x $1.38
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Newark |
10
|
1 x $2.41
|
Visit Site | |
| RS UK |
40
|
|
Visit Site | |
| Rutronik |
|
2,500 x $1.82
|
Visit Site |
No issues have been reported for the BTS3408GXUMA2
