885012205012

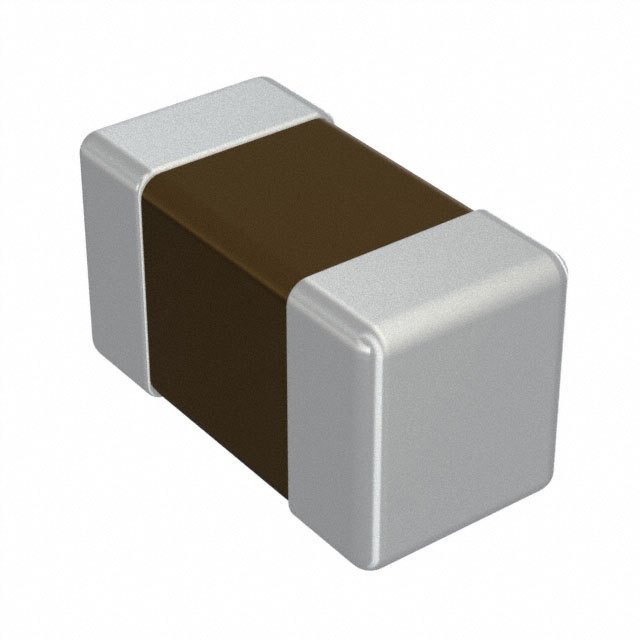

WCAP-CSGP General Purpose MLCC; SMT 0402; X7R; 10nF 10%; 10V; -55C to +125C; Tech. PN X7R0402103K010DFCT10000
Availability: Out of Stock
Package Type: 0402
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 885012205012 by Würth Elektronik Midcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 885012205012
| Part Name | 885012205012 |
| Manufacturer | Würth Elektronik |
| AEC-Q200 Compliant | {'is_url': False, 'value': False} |
| Polarized | {'is_url': False, 'value': False} |
| Voltage Rating (V) | 10.0 |
| Case Package | 0402 |
| Series | WCAP-CSGP |
| Capacitance Tolerance | [-10.0, 10.0] |
| Dissipation Factor | 5.0 |
| Mounting Style | SMT |
| Capacitance | 1e-08 |
| Operating Temperature | [-55.0, 125.0] |
| Insulation Resistance | 10000000000.0 |
| Product Link | https://katalog.we-online.com/en/pbs/WCAP-CSGP-0402/885012205012 |
| RoHS | True |
| RoHS Compliant | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 885012205012
If you experienced any issues with the symbol or footprint, please report it.
