632722200211
USB CONN, 3.2 TYPE-C, RCPT, 24POS;
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 632722200211 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

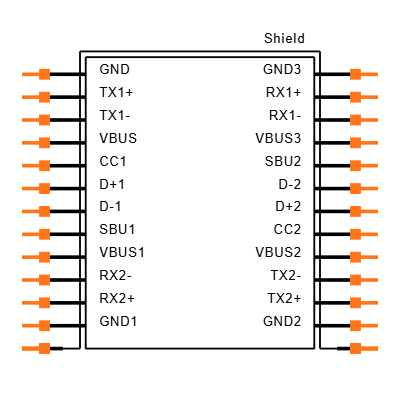

Symbol
No web preview
This Symbol is Available for

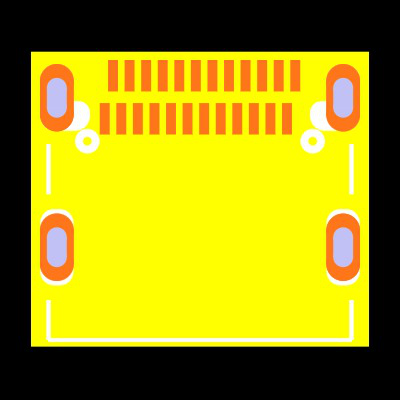

Footprint
No web preview
This Footprint is Available for

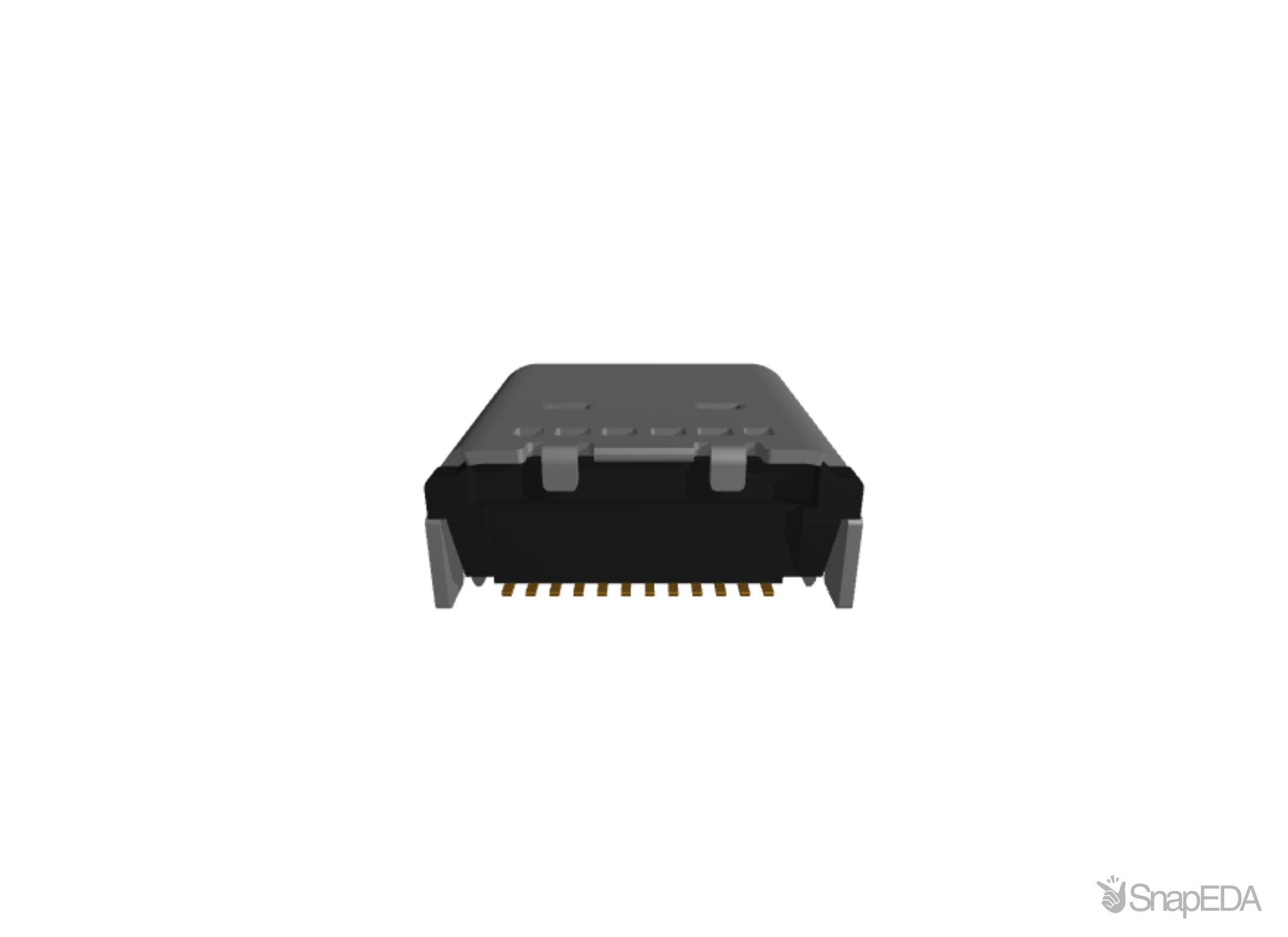

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 632722200211
| Part Name | 632722200211 |
| Manufacturer | Wurth Electronics |
| Product Series Size | USB 3.1 Type C Receptacle Horizontal SMT WR-USB31 |
| Contact Resistance | 0.04 |
| Article Description Long | Receptacle USB 3.1 Type C Horizontal SMT 24 pins |
| Product Family | Input/Output Connectors |
| Weight | 0.7902 |
| Division | Electromechanics |
| Rated Current (A) | 5 |
| Product Unit | eiCan |
| Current Revision (A) | 1.1.0 |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Packaging Type | 13'' Plastic Reel |
| Height | {u'is_url': False, u'value': u''} |
| Reach Approval | (EC)1907/2006 |
| Width | {u'is_url': False, u'value': u''} |
| Length | {u'is_url': False, u'value': u''} |
| Working Voltage (V) | 20 |
| Withstanding Voltage (V) | 100 |
| Spq | 900 |
| Product Group Description | Connectors |
| RoHS | True |
| Life Cycle Status | New at Mouser |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
