503398-1892
Surface Mount Micro SD Card Connector, with Solder Termination | Molex Incorporated 503398-1892
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 503398-1892 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

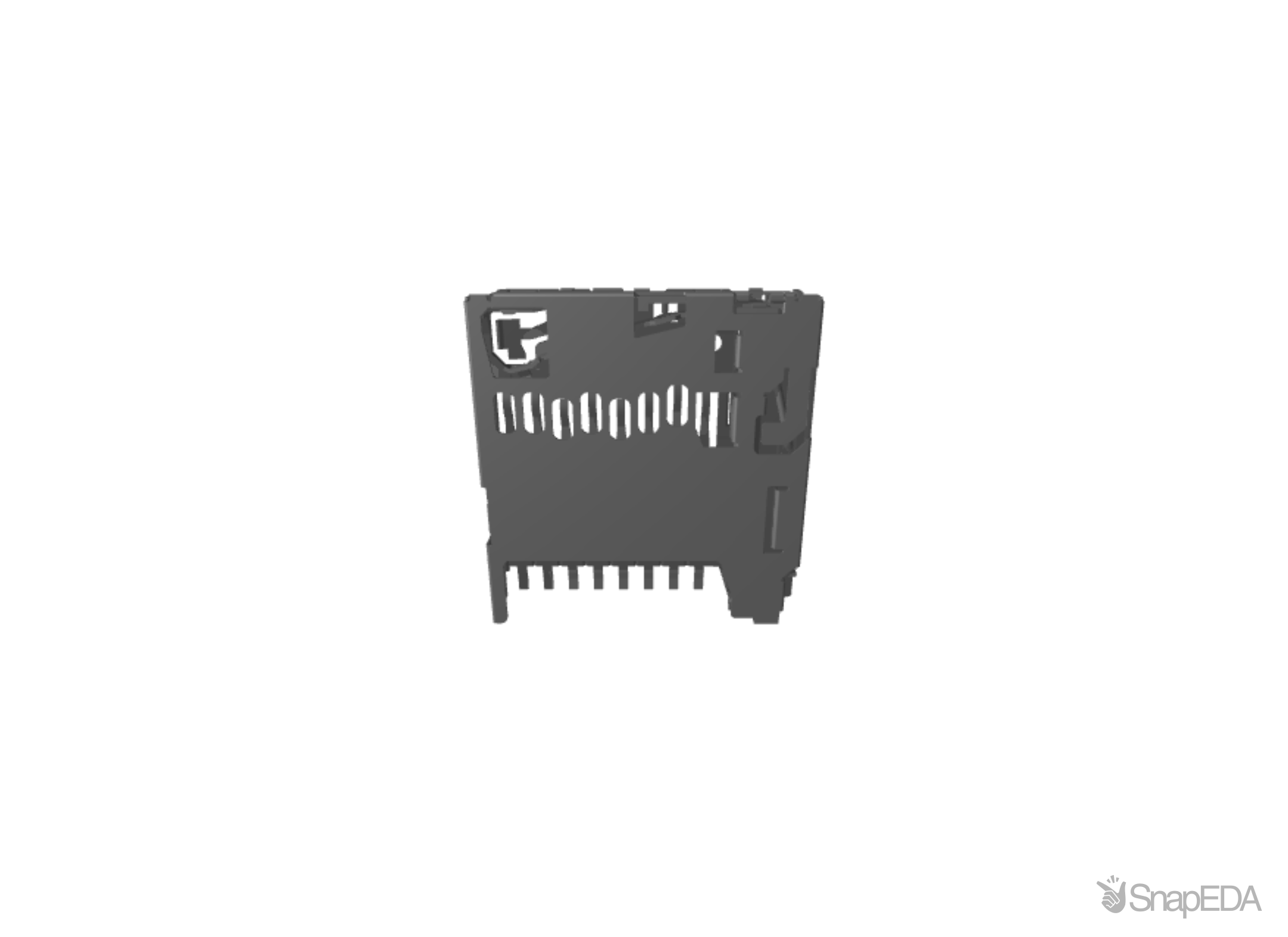

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 503398-1892
| Part Name | 503398-1892 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Termination Method | Solder |
| Dimensions | 13.1 x 14.05 x 1.28 (mm) |
| Mounting Type | Surface Mount |
| Card Type | MicroSD |
| Gender | Male |
| Body Orientation | Straight |
| Pitch | 1.1 (mm) |
| Depth | 1.28 (mm) |
| Housing Material | Glass Filled Liquid Crystal Polymer |
| Width | 14.05 (mm) |
| Length | 13.1 (mm) |
| Number Of Rows | 1 |
| Insertion/Removal Method | Push-Push |
| Series Number | 503398-1892 |
| Minimum Operating Temperature | -25 (°C) |
| Series | 503398 |
| Contact Plating | Gold |
| Number Of Contacts | 8 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Phosphor Bronze |
Inventory for the 503398-1892 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
7,200
|
2,400 x $1.32
|
Visit Site | |
| Chip One Stop |
12,000
|
|
Visit Site | |
| Compona AG |
|
14,400 x $1.48
|
Visit Site | |
| Conrad |
21,600
|
|
Visit Site | |
| Farnell UK |
21,600
|
|
Visit Site | |
| Heilind Americas |
1,586
|
|
Visit Site | |
| Newark |
7,153
|
|
Visit Site | |
| Powell Electronics |
14,256
|
|
Visit Site | |
| RS UK |
2,967
|
|
Visit Site | |
| Rutronik |
2,400
|
2,400 x $1.70
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
2,833
|
|
Visit Site | |
| TTI Americas |
24,000
|
|
Visit Site | |
| element14 Singapore |
6,920
|
|
Visit Site |
Related Questions
Question about pin numbering of 503398
The card pinout shows that detect_switch is on pin 9, but your model has it on pin 10. Will this... (more)
Added 1Â week, 3Â days ago.
No issues have been reported for the 503398-1892
If you experienced any issues with the symbol or footprint, please report it.
