2N7002DWH6327XTSA1
All Small Signal n-channel products are suitable for automotive applications (excluding 2N7002).
Availability: Out of Stock
Package Type: SOT-363
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2N7002DWH6327XTSA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for

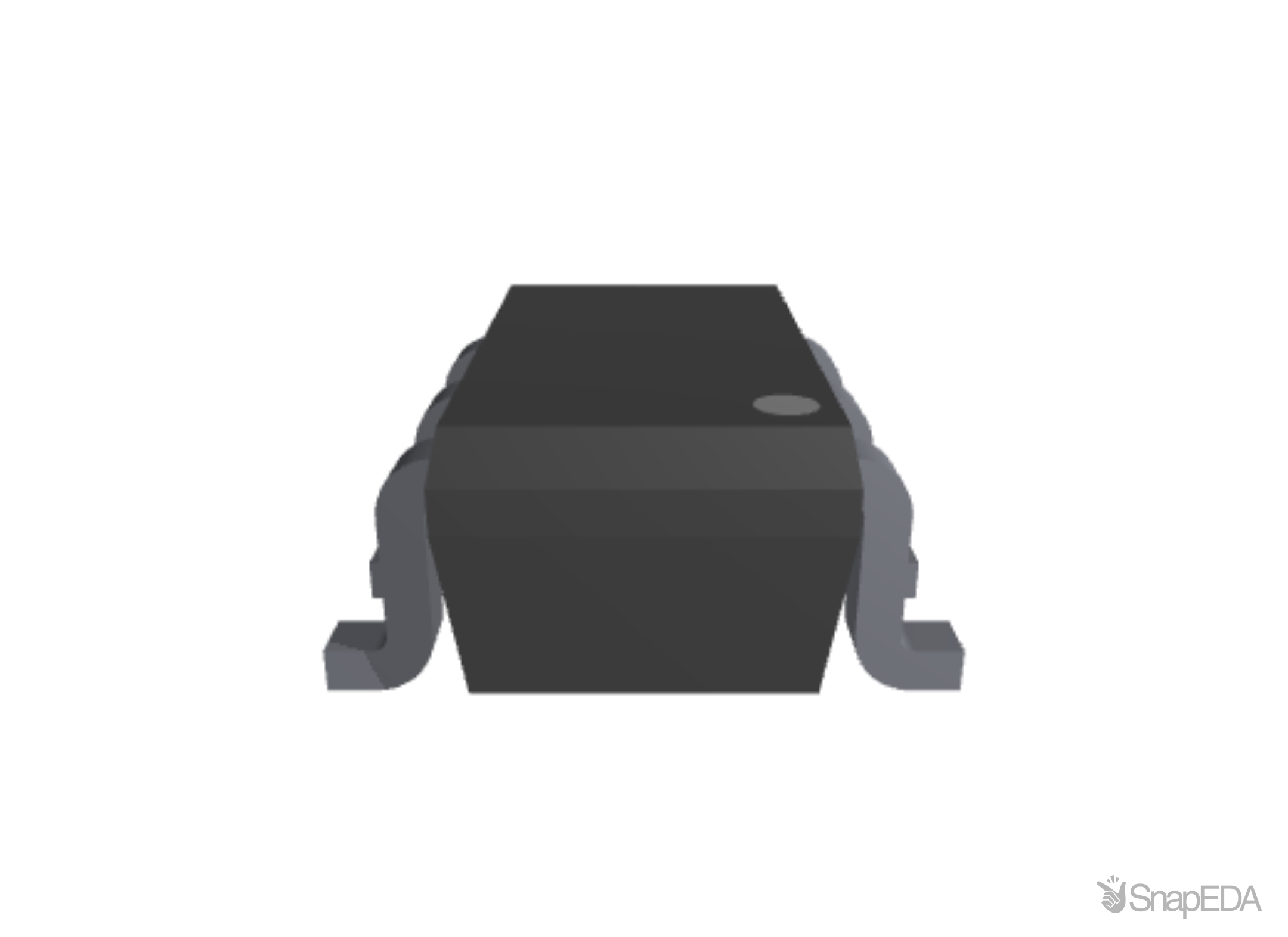

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2N7002DWH6327XTSA1
| Part Name | 2N7002DWH6327XTSA1 |
| Manufacturer | Infineon |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/12v-800v-small-signal-mosfet/2n7002dw/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 300 mA |
| Transistor Material | Si |
| Width | 1.25 (mm) |
| Transistor Configuration | Isolated |
| Maximum Drain Source Voltage (V) | 60 V |
| Maximum Gate Threshold Voltage (V) | 2.5 (V) |
| Package Type | SOT-363 |
| Number Of Elements Per Chip | 2 |
| Minimum Gate Threshold Voltage (V) | 1.5 (V) |
| Maximum Operating Temperature | +150 °C |
| Channel Type | N |
| Length | 2 (mm) |
| Typical Gate Charge Vgs | 0.4 nC @ 10 V |
| Pin Count | 6 |
| Channel Mode | Enhancement |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Series | OptiMOSâ„¢ |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Height | 0.8 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 4 Ω |
No issues have been reported for the 2N7002DWH6327XTSA1
