1EDN8550BXTSA1
Truly differential inputs | 4A source current | 8A sink current | Separate source/sink outputs | Low-ohmic output stage
Availability: In Stock
Package Type: SOT-23-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1EDN8550BXTSA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

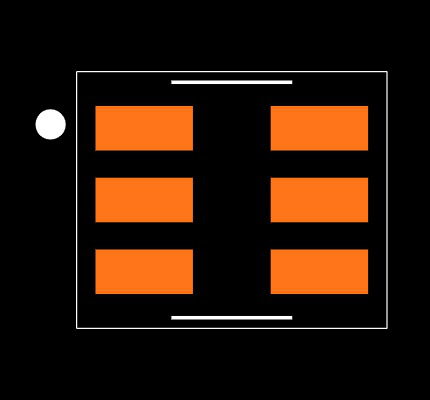

Footprint
No web preview
This Footprint is Available for

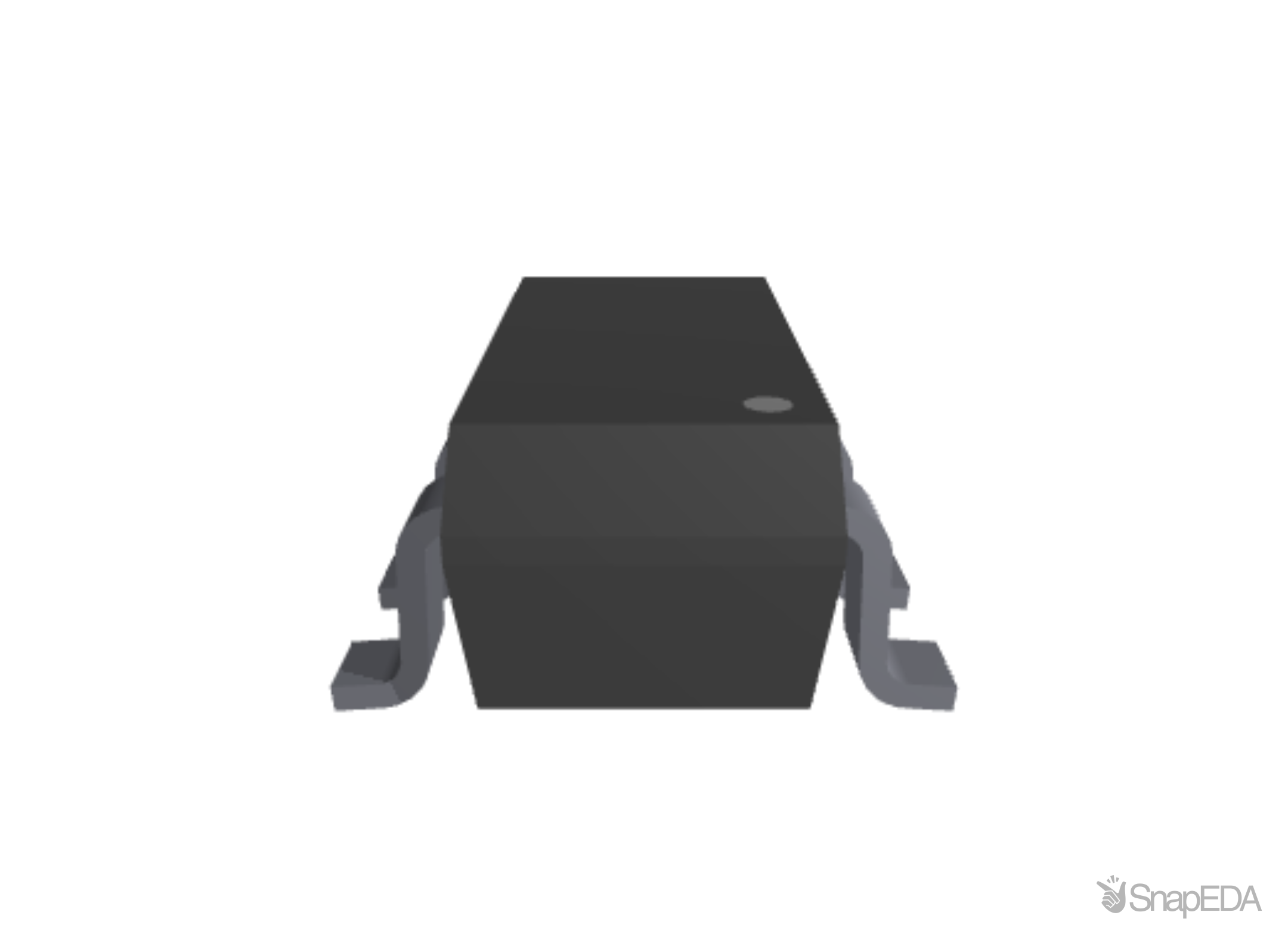

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1EDN8550BXTSA1
| Part Name | 1EDN8550BXTSA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/gate-driver-ics/1edn8550b/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Current (A) | 8 A |
| Logic Type | NMOS |
| Package Type | PG-SOT23-6 |
| Driver Type | MOSFET |
| Fall Time | 4.5 (ns) |
| Pin Count | 23 |
| Supply Voltage (V) | 4.5 → 20 (V) |
