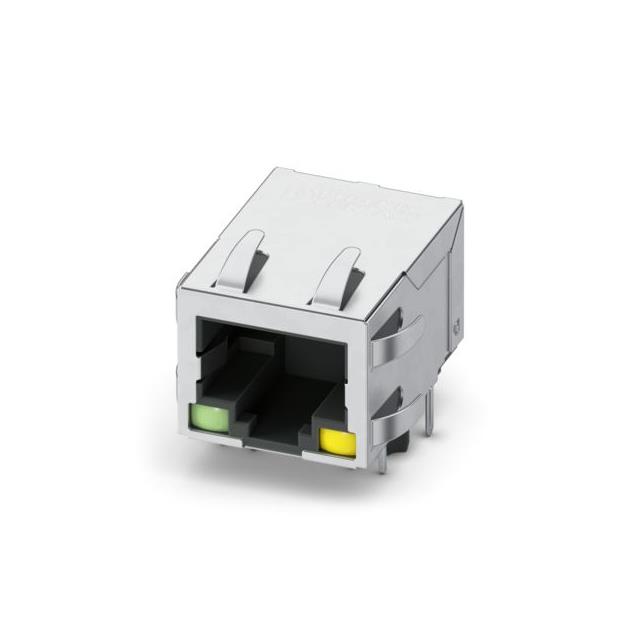

Phoenix Contact 1664108 CUC-IA3G-J1ST-AB/R4T-PL1
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1664108 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1664108
| Part Name | 1664108 |
| Manufacturer | Phoenix Contact |
| Rated Current (A) | 0.5 |
| Type Of Packaging | tray |
| Width | 15.9 |
| Direction Mating Face | Standard |
| GTIN | 4067923204881 |
| Contact Design | Socket |
| Product Description | Filtered RJ45 PCB connectors |
| Certificate/approval | cULus Recognized |
| Gtin (ean) Code | 4067923204881 |
| Internal Article Number | 1664108 |
| Recommended Smd Solder Pad Geometry | null |
| Coating Plug Contact Area | Au (0.762 μm/30 μ") |
| Assembly Height | 13.63 |
| Depth | 21.35 |
| Manufacturer Product Designation | Filtered RJ45 PCB connectors |
| Application Standards | not available |
| Material Of The Contact Coat | Au (0.762 μm/30 μ") |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Material Of Insulation | not relevant |
| Product Article Number Of Manufacturer | 1664108 |
| Pole Number | 8 |
| Height | 17.13 |
| Material Of The Contact | Au (0.762 μm/30 μ") |
| Plug-in Direction | 0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1664108
If you experienced any issues with the symbol or footprint, please report it.
