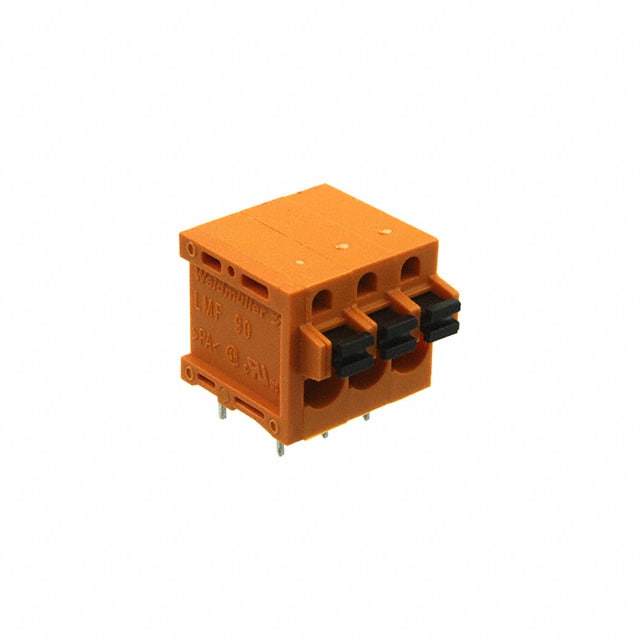

1330720000
PCB terminal, 320 V, 24 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 3, PUSH IN with actuator, THT solder connection, 90°, Box
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1330720000 by Weidmuller and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

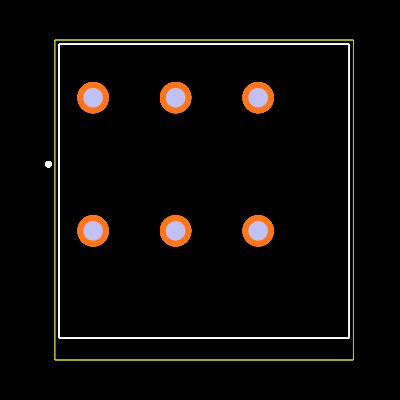

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1330720000
| Part Name | 1330720000 |
| Manufacturer | Weidmuller |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 20 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 300 V, 400 V |
| Gender | Male |
| Series | LMF |
| Colour | Orange |
| Material | CuSn, PA |
| Depth | 14.8 (mm) |
| Termination Method | Solder |
| Width | 19.2 (mm) |
| Length | 17.86 (mm) |
| Number Of Rows | 1 |
| Pitch | 5.08 (mm) |
| Number Of Contacts | 3 |
| Type | PCB Terminal Block |
| Body Orientation | Straight |
Inventory for the 1330720000 by Weidmuller from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Conrad |
|
1 x $77.35
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
|
1 x $1.73
|
Visit Site | |
| RS UK |
175
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the 1330720000
If you experienced any issues with the symbol or footprint, please report it.
